BHA SERIES-PGA 2-2188

See comparative

Code: 2-2188

Castors with polyamix centre and grey rubber tyre. Especially indicated to support high-loads up to 90 Kg.

It is used in: canteens, dining rooms, restaurants, supermarkets, food trolleys and beds.

PGA: does not leave marks on floor. Smooth and noiseless castor.

Components

Brackets

Made of pressed steel up to 2 mm.Finish: zinc-plated.Double ball bearing swivel head.Manufactured to European standards EN 12530.

Wheel

Grey rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

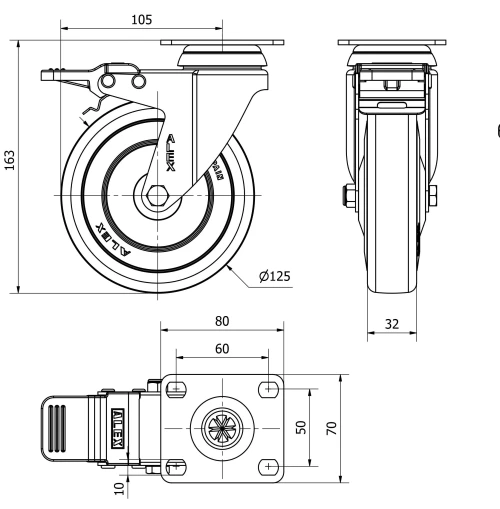

Technical Data 2-2188

EAN:

8422202221885

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Rubber

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

80-85º SHORE A

Bearing:

Ball

Diameter (mm):

125

Width of tyre (mm):

Plate dimensions (mm):

80x70

Distance between holes (mm):

60x50

Plate hole diameter (mm):

Offset (mm):

105

Overall height (mm):

163

Load:

100

Unit Weight of the wheel (kg):

1,01

Volume (cm³):

1703
