BHA SERIES-PGA 2-2187

See comparative

Code: 2-2187

Castors with polyamix centre and grey rubber tyre. Especially indicated to support high-loads up to 90 Kg.

It is used in: canteens, dining rooms, restaurants, supermarkets, food trolleys and beds.

PGA: does not leave marks on floor. Smooth and noiseless castor.

Components

Brackets

Made of pressed steel up to 2 mm. Finish: zinc-plated. Double ball bearing swivel head. Manufactured to European standards EN 12530.

Wheel

Grey rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

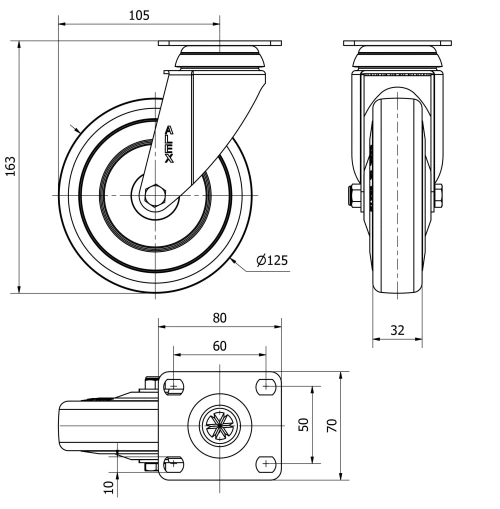

Technical Data 2-2187

EAN:

8422202221878

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Bearing:

Ball

Diameter (mm):

125

Width of tyre (mm):

Plate dimensions (mm):

80x70

Distance between holes (mm):

60x50

Plate hole diameter (mm):

Offset (mm):

105

Overall height (mm):

163

Load:

100

Unit Weight of the wheel (kg):

0,961

Volume (cm³):

1573
