BHA SERIES-PGA 2-4590

See comparative

Code: 2-4590

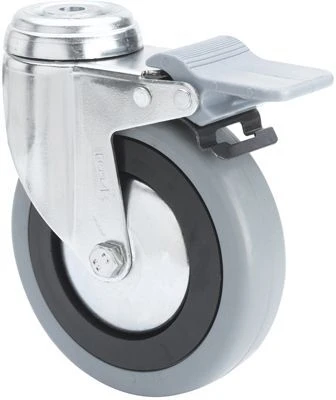

Castors with polyamix centre and grey rubber tyre. Especially indicated to support high-loads up to 90 Kg.

It is used in: canteens, dining rooms, restaurants, supermarkets, food trolleys and beds.

PGA: does not leave marks on floor. Smooth and noiseless castor.

Components

Brackets

Made of pressed steel up to 2 mm.Finish: zinc-plated.Double ball bearing swivel head.Manufactured to European standards EN 12530.

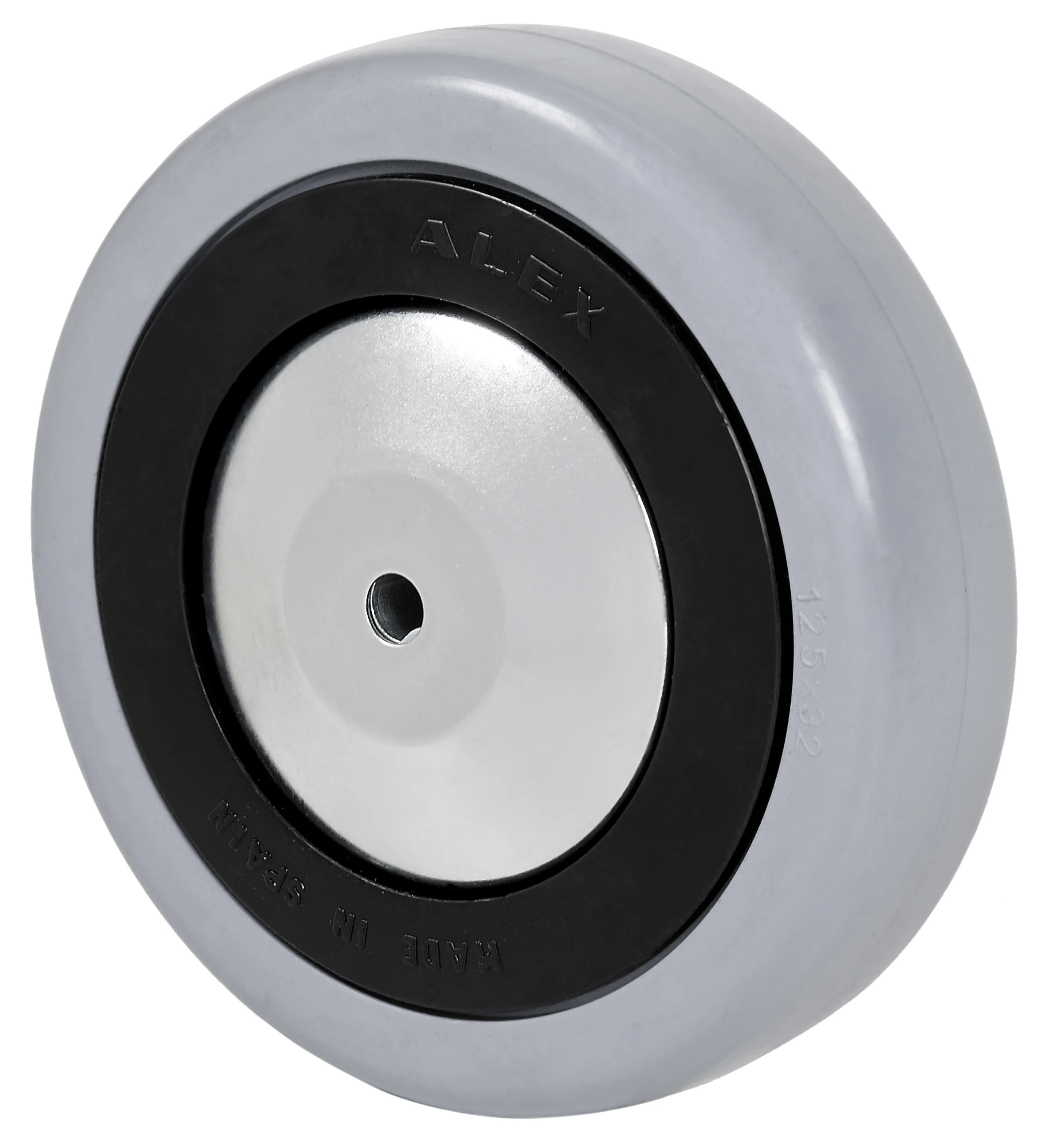

Wheel

Grey rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

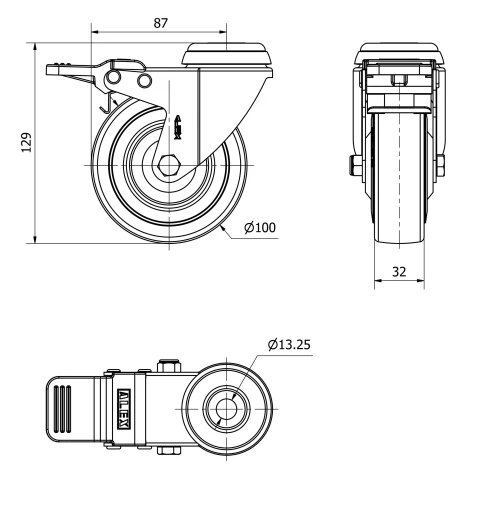

Technical Data 2-4590

EAN:

8422202245904

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Wheel Brake And Fork

Material:

Rubber

Bearing:

Plain

Diameter (mm):

100

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

129

Load:

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

2-4587

2-4589

2-4588
