Which castors do you need?
BHA SERIES-PGA 2-1436
EAN 8422202214368
Castors with polyamix centre and grey rubber tyre. Especially indicated to support high-loads up to 90 Kg.
It is used in: canteens, dining rooms, restaurants, supermarkets, food trolleys and beds.
PGA: does not leave marks on floor. Smooth and noiseless castor.

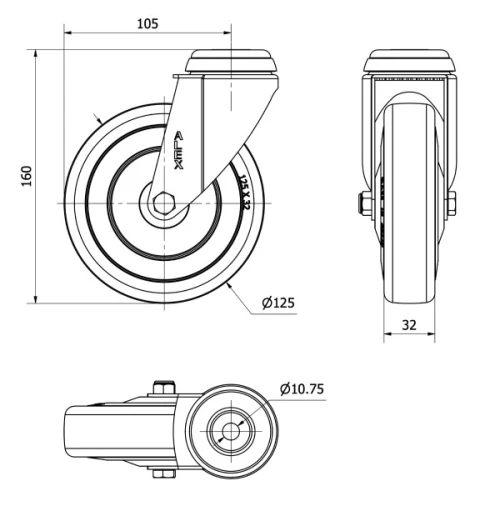

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Without Brake |
Material | Rubber |
Bearing | Plain |
Diameter (mm) | 125 |
Width of tyre (mm) | 32 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 105 |
Overall height (mm) | 160 |
Load | 100 |
Unit Weight of the wheel (kg) | 0.82 |
Volume (cm3) | 1256 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 2 mm.Finish: zinc-plated.Double ball bearing swivel head.Manufactured to European standards EN 12530.
Grey rubber tyre on polypropylene centre
Temperature range: -20º ÷ +60º
-
Rolling Resistence Reasonable
-
Noise during the march Excelent
-
Floor Protection Excelent
