BHA SERIES-PGZ 2-4625

Code: 2-4625

Grey injected rubber castors. Especially indicated to support high-loads up to 90 Kg.

It is used in: food trolleys, kitchens, canteens, dining rooms, restaurants, food industry, supermarkets, housekeeping carts and beds.

PGZ: does not leave marks on floor. Easy to move with load.

Components

Brackets

Made of pressed steel up to 2 mm. Finish: zinc-plated. Double ball bearing swivel head. Manufactured to European standards EN 12530.

Wheel

Injected rubber tyre on polypropylene centre

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

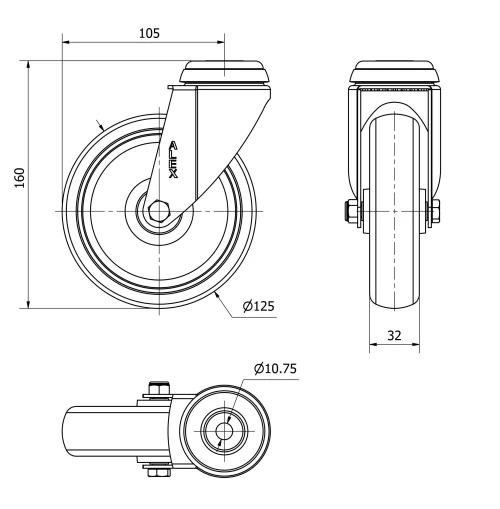

Technical Data 2-4625

EAN:

8422202246253

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Without Brake

Material:

Rubber

Bearing:

Roller

Diameter (mm):

125

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

105

Overall height (mm):

160

Load:

100
