Which castors do you need?
BHA SERIES-PGZ 2-4614
EAN 8422202246147
Grey injected rubber castors. Especially indicated to support high-loads up to 90 Kg.
It is used in: food trolleys, kitchens, canteens, dining rooms, restaurants, food industry, supermarkets, housekeeping carts and beds.
PGZ: does not leave marks on floor. Easy to move with load.

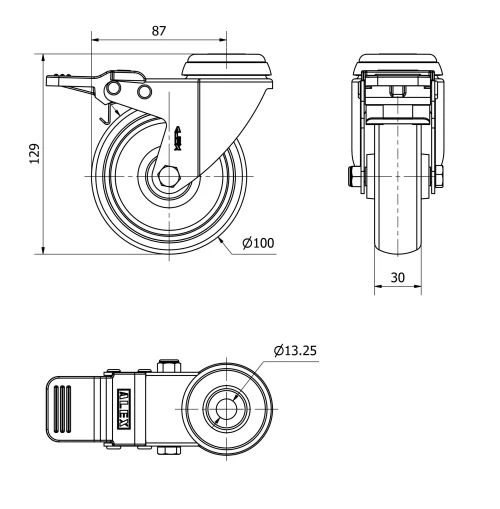

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Wheel Brake And Fork |
Material | Rubber |
Bearing | Plain |
Diameter (mm) | 100 |
Width of tyre (mm) | 30 |
Plate hole diameter (mm) | 12 |
Offset (mm) | 87 |
Overall height (mm) | 129 |
Load | 90 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 2 mm. Finish: zinc-plated. Double ball bearing swivel head. Manufactured to European standards EN 12530.
Injected rubber tyre on polypropylene centre
-
Rolling Resistence Good
-
Noise during the march Very Good
-
Floor Protection Very Good
