BHA-SERIES-UT 2-4802

See comparative

Code: 2-4802

White polypropylene castors. Especially designed to support loads up to 100 kg.

Used in food trolleys, kitchens, canteens, dining halls, restaurants, food factories, supermarkets, cleaning trolleys, beds.

UT: Impact-resistant and undeformable. Easy start and rolling .

Components

Brackets

Made of pressed steel up to 2 mm. Finish: zinc-plated. Double ball bearing swivel head. Manufactured to European standards EN 12530

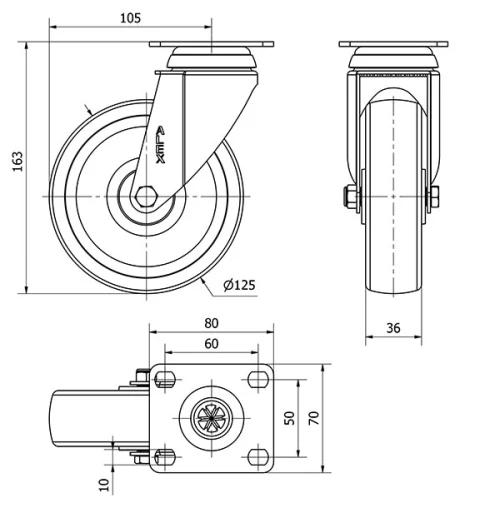

Technical Data 2-4802

EAN:

8422202248028

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polypropylene

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

65º SHORE D

Bearing:

Roller

Diameter (mm):

125

Width of tyre (mm):

Plate dimensions (mm):

80x70

Distance between holes (mm):

60x50

Plate hole diameter (mm):

Offset (mm):

105

Overall height (mm):

163

Load:

100
