Which castors do you need?
BHA-SERIES-UT 2-1433
EAN 8422202214337
White polypropylene castors. Especially designed to support loads up to 100 kg.
Used in food trolleys, kitchens, canteens, dining halls, restaurants, food factories, supermarkets, cleaning trolleys, beds.
UT: Impact-resistant and undeformable. Easy start and rolling .

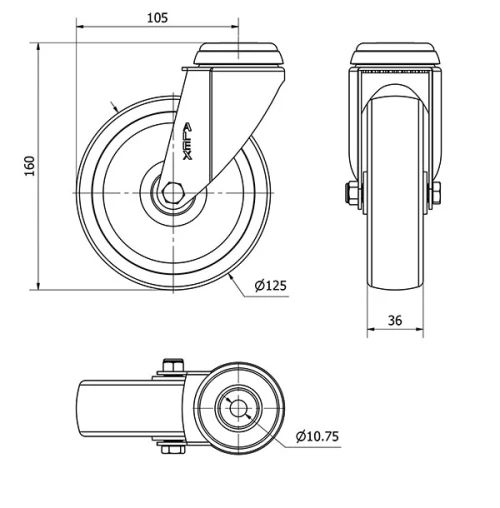

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Without Brake |
Low Temperature (ºC) | -20 |
Maximum Temperature (ºC) | 60 |
Bearing | Plain |
Diameter (mm) | 125 |
Width of tyre (mm) | 35 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 105 |
Overall height (mm) | 160 |
Load | 100 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Brackets
Made of pressed steel up to 2 mm. Finish: zinc-plated. Double ball bearing swivel head. Manufactured to European standards EN 12530.
