BHA SERIES-PPI 2-4676

Code: 2-4676

Injected polyurethane castors. Especially designed to support loads up to 100 kg.

Used in food trolleys, kitchens, canteens, dining halls, restaurants, food factories, supermarkets, cleaning trolleys, beds.

PPI Wheel: Noiseless, multipurpose, easy rolling.

Components

Brackets

Made of pressed steel up to 2 mm. Finish: zinc-plated. Double ball bearing swivel head. Manufactured to European standards EN 12530.

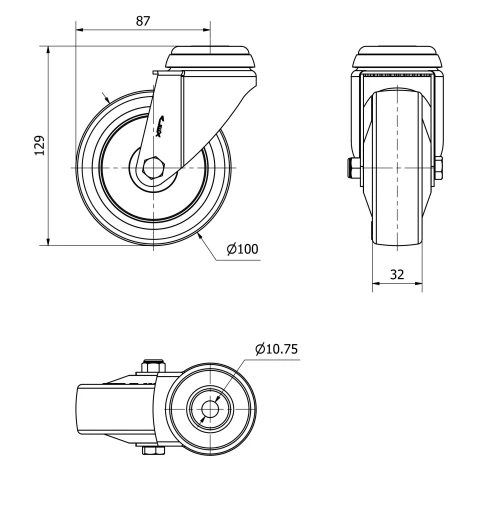

Technical Data 2-4676

EAN:

8422202246765

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Without Brake

Material:

Polyurethane

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

55º-60º SHORE D

Bearing:

Plain

Diameter (mm):

100

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

129

Load:

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
