HP SERIES PGC 2-3573

Code: 2-3573

Polyamix and black rubber wheels. Especially suitable for supporting loads of up to 40 kg. Our range of HP-PGI series wheels is recommended for medium load capacity sectors. Suitable for use in: displays, furniture, stools, catering, hospitals, utility carts, clinical and sanitary furniture, IV stands, cleaning trolleys, and IV pole holders.

PGC: Non-marking. Easy rolling. Noiseless. Electrically conductive.

Components

Brackets

Made of reinforced polyamide Casing with flushed recess for the rounded ergonomic brake Manufactured to European Standard EN 12528

Wheel

Antistatic grey polyurethane tyre on polypropylene centre.Shore A 95º

Temperature range: -25º ÷ +80º

Rolling Resistence Very Good

Noise during the march Good

Floor Protection Very Good

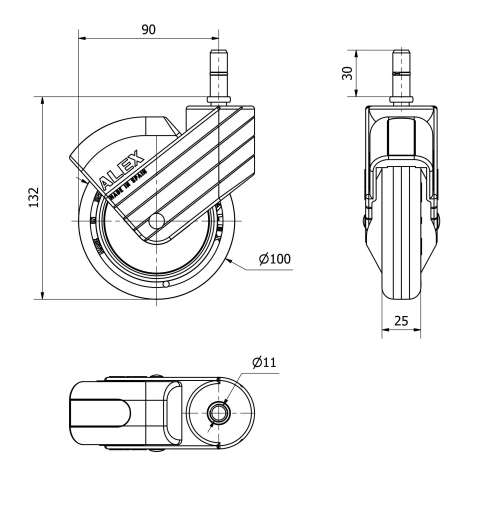

Technical Data 2-3573

EAN:

8422202235738

Housing Type:

Swivel

Fitting Type:

Stem

Braking System:

Without Brake

Low Temperature (ºC):

-25

Maximum Temperature (ºC):

Hardness of tread:

95º SHORE A

Bearing:

Plain

Diameter (mm):

100

Width of tyre (mm):

Width x height of stem:

11X30

Offset (mm):

Overall height (mm):

132

Load:

Unit Weight of the wheel (kg):

0,299

Volume (cm³):

842

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
