HP SERIES PGC 2-3574
EAN 8422202235745

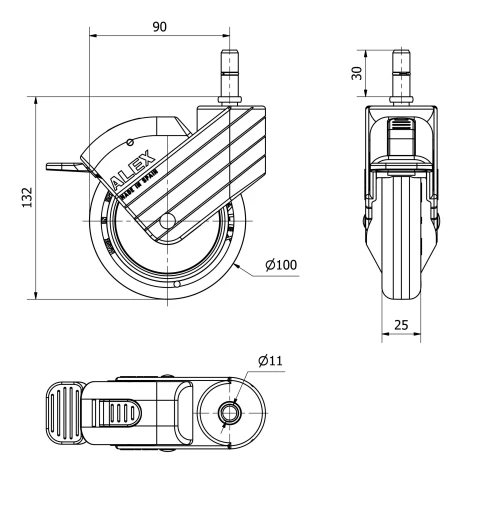

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Stem |
Braking System | Wheel Brake And Fork |
Hardness of tread | 55º-60º SHORE D |
Bearing | Plain |
Diameter (mm) | 100 |
Width of tyre (mm) | 25 |
Width x height of stem | 11X30 |
Offset (mm) | 90 |
Overall height (mm) | 132 |
Load | 40 |
Unit Weight of the wheel (kg) | 31 |
Volume (cm3) | 842 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Brackets
Made of reinforced polyamide Casing with flushed recess for the rounded ergonomic brake Manufactured to European Standard EN 12528
Wheel
Antistatic grey polyurethane tyre on polypropylene centre.Shore A 95º
Temperature range: -25º ÷ +80º
-
Rolling Resistence Very Good
-
Noise during the march Good
-
Floor Protection Very Good
