WL SERIES-RIFN 4-1646
EAN 8422202416465

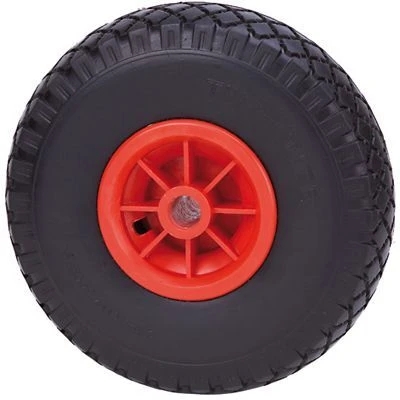

Black pneumatic castors, with polypropylene centre and plain wheel bearing (RIFN) or roller wheel bearing (RIFR), especially indicated to support high-loads up to 100 Kg.
It is used in: delivery carts, transporting bottles, drums, trailers, warehouse carts, platforms and transport carts.
RIFN-RIFR: puncture-proof, noiseless, proper shock absorption.

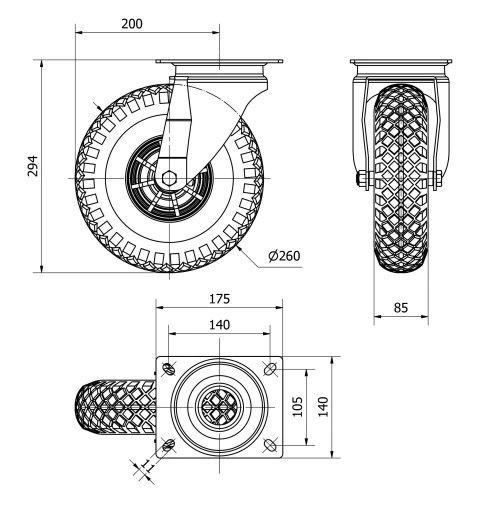

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Pneumatic Wheel |
Bearing | Roller |
Diameter (mm) | 260 |
Width of tyre (mm) | 85 |
Plate dimensions (mm) | 175x140 |
Distance between holes (mm) | 140x105 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 200 |
Overall height (mm) | 294 |
Load | 100 |
Unit Weight of the wheel (kg) | 3.62 |
Volume (cm3) | 11833 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Pressed steel bracket.Finish: zinc plated.Excellent shock absorption.Low rolling resistance on uneven floors.Very floor saving due to the air cushion.
Puncture-proof foam-filled tyre on polypropylene rim
-
Rolling Resistence Good
-
Noise during the march Very Good
-
Floor Protection Excelent
