WL SERIES-RIFN 4-0901

See comparative

Code: 4-0901

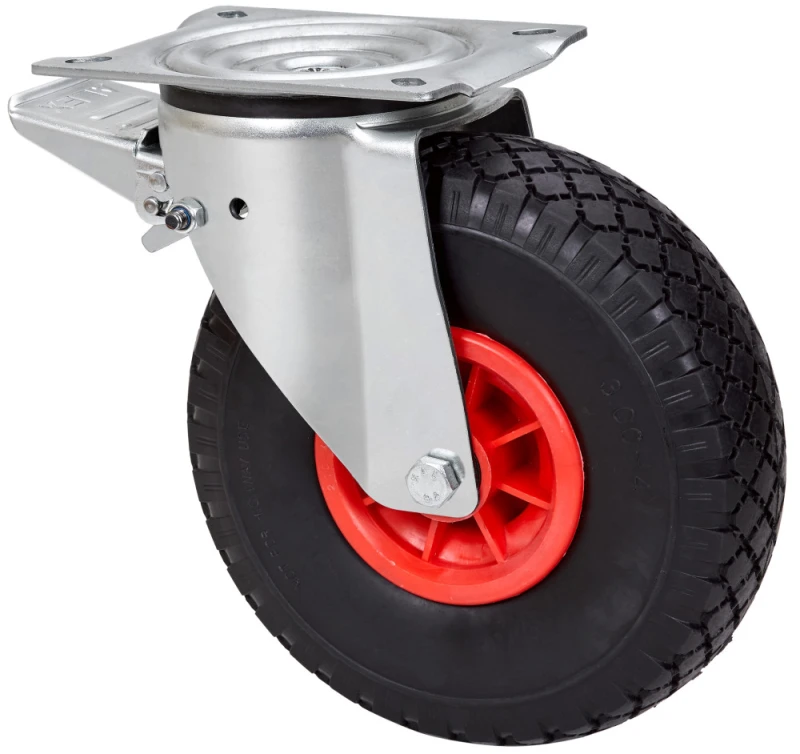

Black pneumatic castors, with polypropylene centre and plain wheel bearing (RIFN) or roller wheel bearing (RIFR), especially indicated to support high-loads up to 100 Kg.

It is used in: delivery carts, transporting bottles, drums, trailers, warehouse carts, platforms and transport carts.

RIFN-RIFR: puncture-proof, noiseless, proper shock absorption.

Components

Brackets

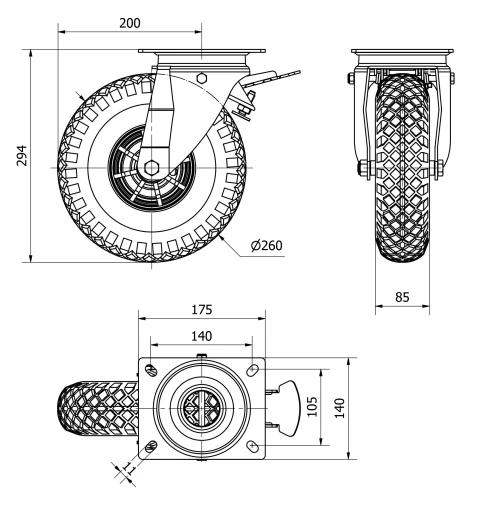

Technical Data 4-0901

EAN:

8422202409016

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake

Bearing:

Roller

Diameter (mm):

260

Width of tyre (mm):

Plate dimensions (mm):

175x140

Distance between holes (mm):

140x105

Plate hole diameter (mm):

Offset (mm):

200

Overall height (mm):

294

Load:

100

Unit Weight of the wheel (kg):

3,72

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

4-1646

4-1647
