HLG SERIES-FT 2-3818
EAN 8422202238180
Reinforced nylon double castor, especially indicated to support high-loads up to 2.500 Kg.
It is used in: logistics transport tools, cranes transporting heavy materials elevating platforms and mobile platforms.
Mainly used in the aeronautic sector, railway and automobile factories.
FT: Castors especially indicated for chemical and food industry applications. Does not leave marks on floor. Reinforced. High resistance to impacts and collisions.

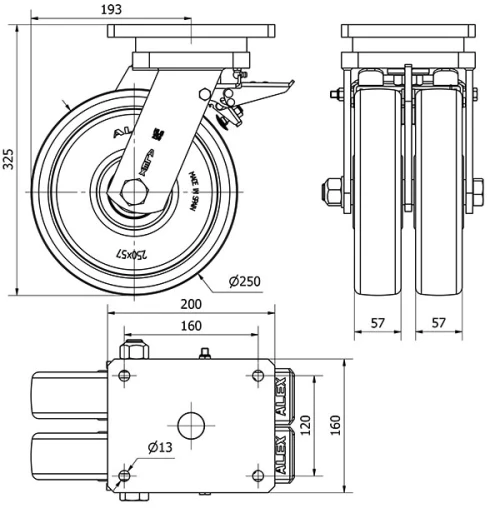

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake And Fork |
Material | Nylon(Polyamide 6) |
Bearing | Ball |
Diameter (mm) | 250 |
Width of tyre (mm) | 57x2 |
Plate dimensions (mm) | 200x160 |
Distance between holes (mm) | 160x120 |
Plate hole diameter (mm) | 12 |
Offset (mm) | 193 |
Overall height (mm) | 325 |
Load | 2400 |
Unit Weight of the wheel (kg) | 15.5 |
Volume (cm3) | 15236 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Heavy fabricated castors made of welded steel up to 8 mm. Painted black. Combination of thrust ball bearing and tapered roller bearing in the swivel head: the upper for axial eff orts and the lower for radial efforts. Totally sealed swivel head, grease nipples on the swivel head and wheel. Manufactured to European standard EN 12532/12533.
-
Rolling Resistence Excelent
-
Noise during the march Reasonable
-
Floor Protection Reasonable
