HLG SERIES-HU 2-1866

Code: 2-1866

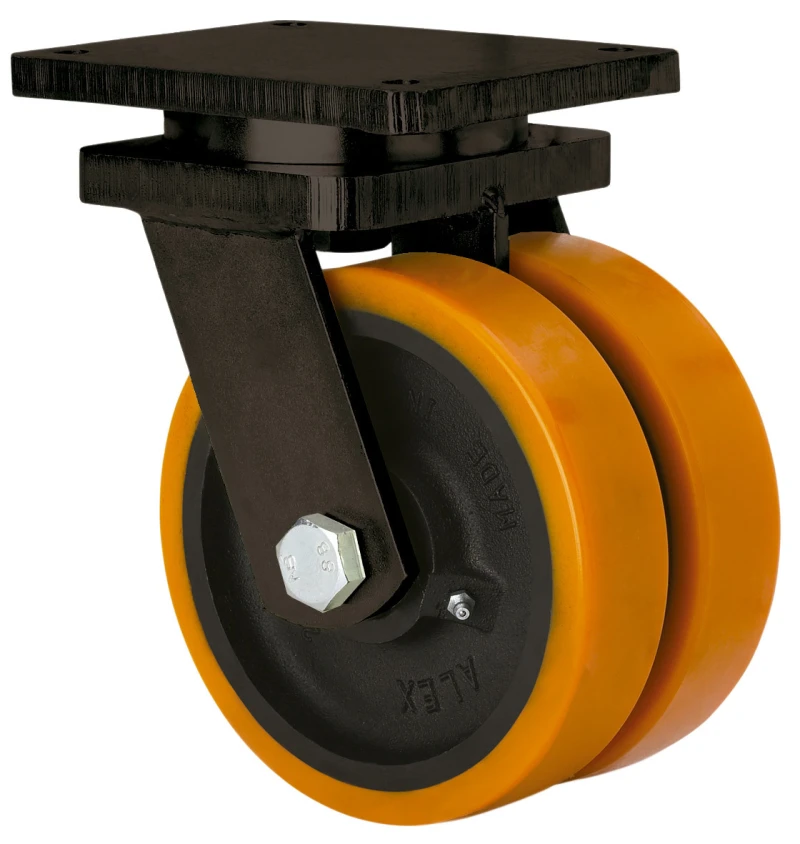

Double castor with steel centre and cast polyurethane tyre with a hardness of 95º Shore A, especially indicated to support high-loads up to 2.500 kg.

It is used in: logistics transport tools, cranes transporting heavy materials and elevating platforms.

Mainly used in the aeronautic sector, railway and automobile factories.

Castors with high absorption to impacts. Floor protection and high abrasion and wear resistance. Recommended for rough surfaces, broken, with metallic shavings, oil stains, broken glass, grease, gravel.

Components

Brackets

Heavy fabricated castors made of welded steel up to 8 mm. Painted black. Combination of thrust ball bearing and tapered roller bearing in the swivel head: the upper for axial eff orts and the lower for radial efforts. Totally sealed swivel head, grease nipples on the swivel head and wheel. Manufactured to European standard EN 12532/12533.

Wheel

Rolling Resistence Very Good

Noise during the march Good

Floor Protection Very Good

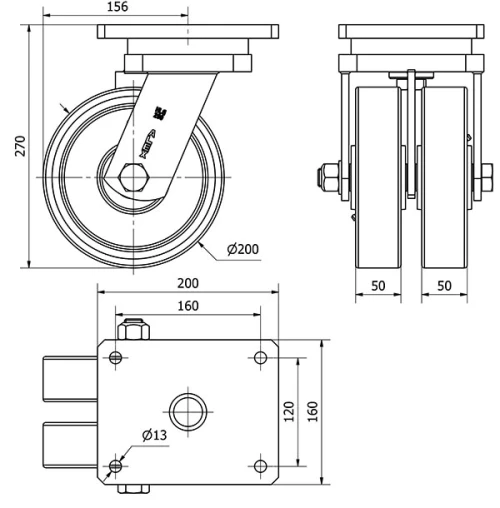

Technical Data 2-1866

EAN:

8422202218663

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polyurethane

Hardness of tread:

95º SHORE A

Bearing:

Ball

Diameter (mm):

200

Width of tyre (mm):

50x2

Plate dimensions (mm):

200x160

Distance between holes (mm):

160x120

Plate hole diameter (mm):

Offset (mm):

156

Overall height (mm):

270

Load:

2200

Unit Weight of the wheel (kg):

18,856

Volume (cm³):

11059
