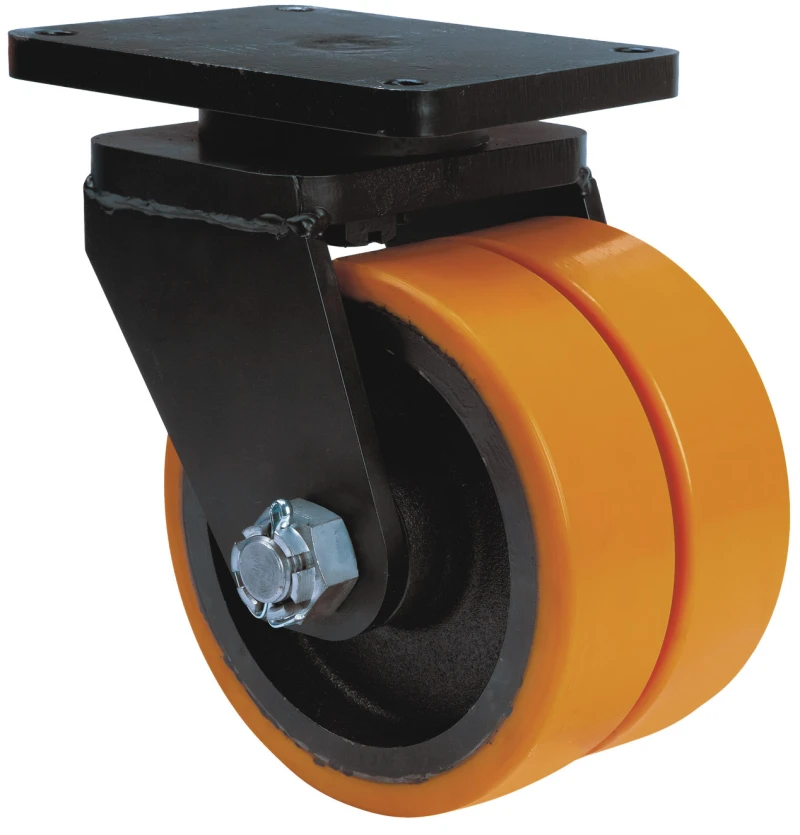

Double castors with steel centre and cast polyurethane tyre with a hardness of 95º Shore A, especially indicated to support high-loads up to 4.000 Kg.
It is used in: logistics transport tools, cranes transporting heavy materials and elevating platforms.
HU: high absorption to impacts. Protection of floors and high resistance to the abrasion wear. Noiseless. Recommended for rough flooring surfaces, uneven, broken, with metallic shavings, oil stains, broken glass, grease and gravel.

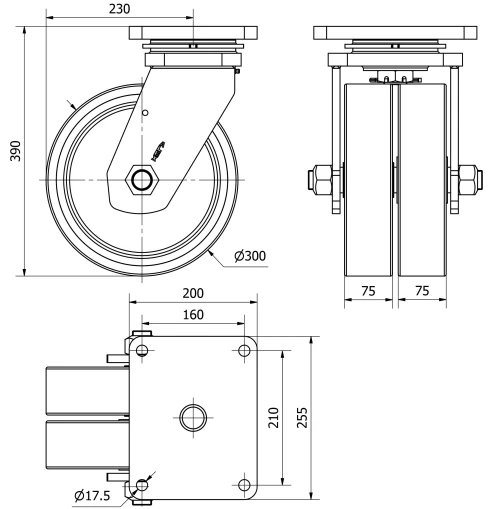

|Braking System||Without Brake|
|Hardness of tread||95º SHORE A|
|Width of tyre (mm)||75x2|
|Plate dimensions (mm)||255x200|
|Distance between holes (mm)||210x160|
|Plate hole diameter (mm)||16|
|Overall height (mm)||390|
|Unit Weight of the wheel (kg)||44|
Made of welded steel up to 12mm .Black painted finish. Combination of thrust ball bearing and roller bearing in the head: the upper for axial efforts and the lower for radial efforts. Protected swivel head, with grease nipple and solid welded central rod. Wheel with precision ball bearings and solid threaded axle. Manufactured to European Standard EN 12532
Rolling Resistence Very Good
Noise during the march Good
Floor Protection Very Good
