HLR SERIES-HU 2-3594
EAN 8422202235943
Double castors with steel centre and cast polyurethane tyre with a hardness of 95º Shore A, especially indicated to support high-loads up to 4.000 Kg.
It is used in: logistics transport tools, cranes transporting heavy materials and elevating platforms.
HU: high absorption to impacts. Protection of floors and high resistance to the abrasion wear. Noiseless. Recommended for rough flooring surfaces, uneven, broken, with metallic shavings, oil stains, broken glass, grease and gravel.

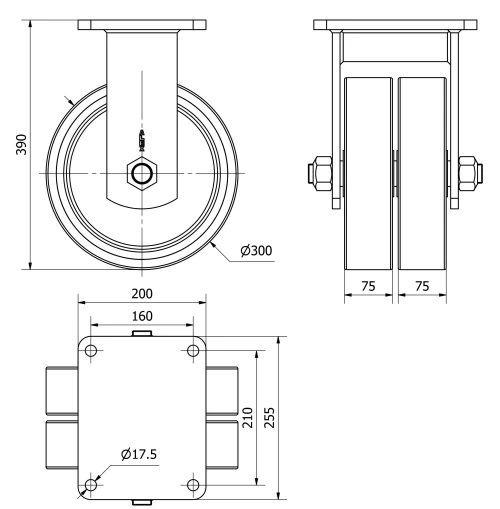

Technical Data
Housing Type | Fixed |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Hardness of tread | 95º SHORE A |
Bearing | Ball |
Diameter (mm) | 300 |
Width of tyre (mm) | 75x2 |
Plate dimensions (mm) | 255x200 |
Distance between holes (mm) | 210x160 |
Plate hole diameter (mm) | 16 |
Overall height (mm) | 390 |
Load | 4000 |
Unit Weight of the wheel (kg) | 36 |
Volume (cm3) | 23400 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of welded steel up to 12mm .Black painted finish. Combination of thrust ball bearing and roller bearing in the head: the upper for axial efforts and the lower for radial efforts. Protected swivel head, with grease nipple and solid welded central rod. Wheel with precision ball bearings and solid threaded axle. Manufactured to European Standard EN 12532
-
Rolling Resistence Very Good
-
Noise during the march Good
-
Floor Protection Very Good
