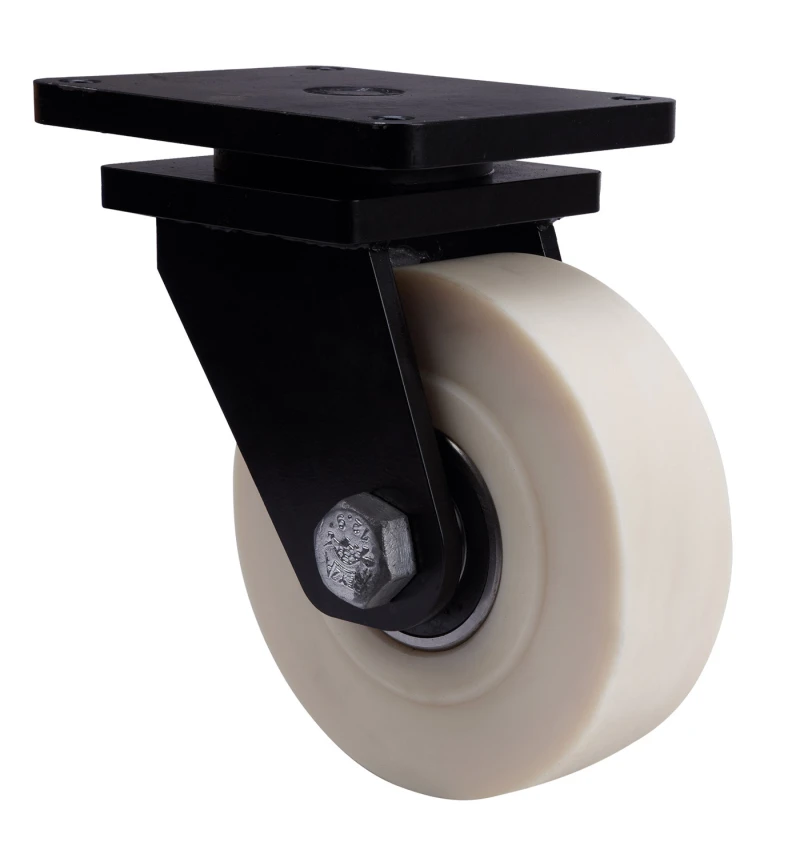

HLR SERIES-NF 2-3595

Code: 2-3595

High density reinforced cast nylon castors, very resistant to all kind of chemical products and abrasion wear. Especially indicated to support high-loads up to 7.000 Kg.

It is used in: ship trailers, logistics transport tools, cranes transporting heavy materials and elevating platforms.

Mainly used in the railway sector and ports, due to its high corrosion resistance against external factors. Used in wind farms.

Extra heavy duty castors. High resistance to impacts and collisions. Extra heavy. Low resistance to traction.

Components

Brackets

Made of welded steel up to 12mm .Black painted finish. Combination of thrust ball bearing and roller bearing in the head: the upper for axial efforts and the lower for radial efforts. Protected swivel head, with grease nipple and solid welded central rod. Wheel with precision ball bearings and solid threaded axle. Manufactured to European Standard EN 12532

Wheel

Reinforced nylon (Polyamid 6) wheel, white colour. Prolonged idle periods are recommended to avoid overheating.

Temperature range: -30º ÷ +80º

Rolling Resistence Excelent

Noise during the march Reasonable

Floor Protection Reasonable

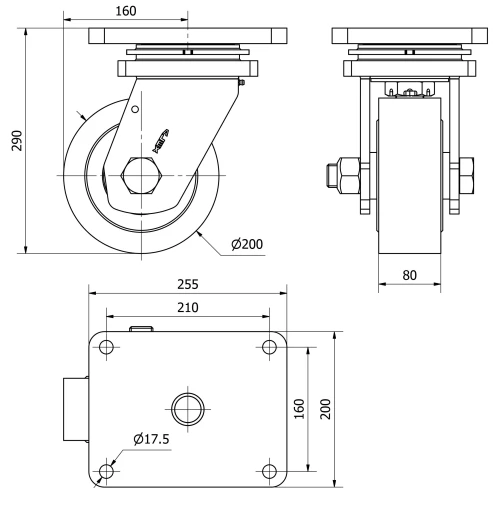

Technical Data 2-3595

EAN:

8422202235950

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Bearing:

Ball

Diameter (mm):

200

Width of tyre (mm):

Plate dimensions (mm):

255x200

Distance between holes (mm):

210x160

Plate hole diameter (mm):

Offset (mm):

160

Overall height (mm):

290

Load:

4500

Unit Weight of the wheel (kg):

Volume (cm³):

16675
