EAN 8422202235981

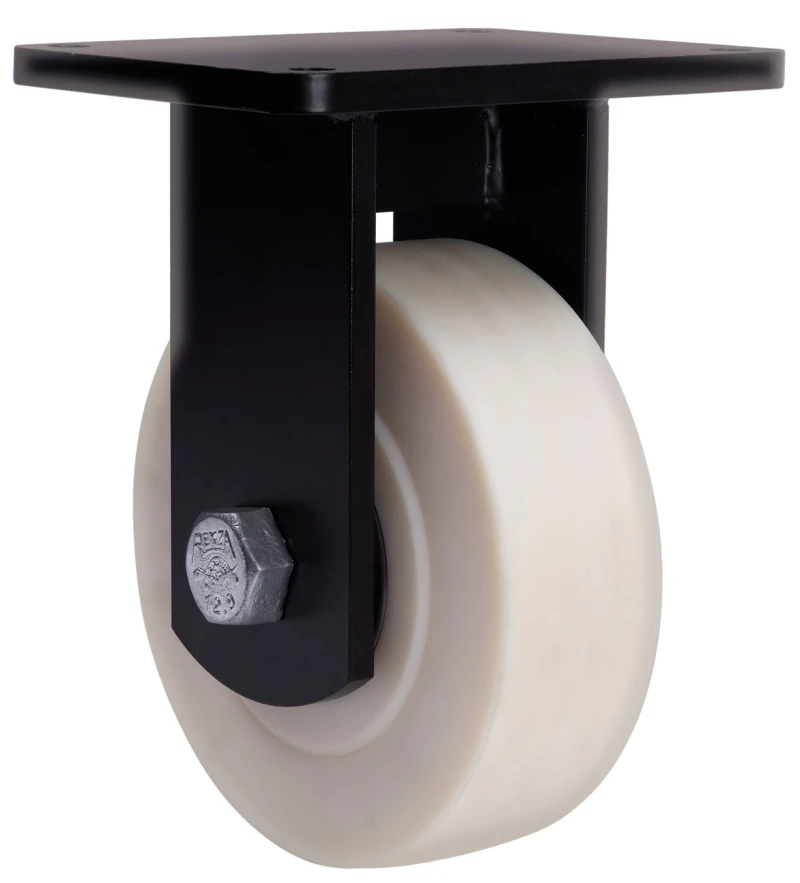

High density reinforced cast nylon castors, very resistant to all kind of chemical products and abrasion wear. Especially indicated to support high-loads up to 7.000 Kg.
It is used in: ship trailers, logistics transport tools, cranes transporting heavy materials and elevating platforms.
Mainly used in the railway sector and ports, due to its high corrosion resistance against external factors. Used in wind farms.
Extra heavy duty castors. High resistance to impacts and collisions. Extra heavy. Low resistance to traction.

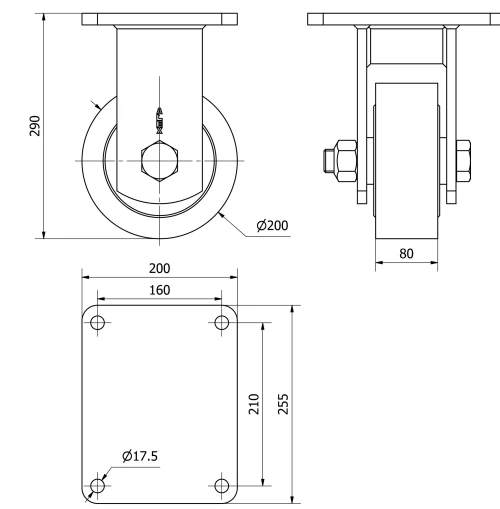

| Housing Type | Fixed |
|---|---|
| Fitting Type | Plate |
| Braking System | Without Brake |
| Bearing | Ball |
| Diameter (mm) | 200 |
| Width of tyre (mm) | 80 |
| Plate dimensions (mm) | 255x200 |
| Distance between holes (mm) | 210x160 |
| Plate hole diameter (mm) | 16 |
| Overall height (mm) | 290 |
| Load | 4500 |
| Unit Weight of the wheel (kg) | 16 |
| Volume (cm3) | 14790 |
Made of welded steel up to 12mm .Black painted finish. Combination of thrust ball bearing and roller bearing in the head: the upper for axial efforts and the lower for radial efforts. Protected swivel head, with grease nipple and solid welded central rod. Wheel with precision ball bearings and solid threaded axle. Manufactured to European Standard EN 12532
Rolling Resistence Excelent
Noise during the march Reasonable
Floor Protection Reasonable
