Which castors do you need?
TVA SERIES-HG 2-2499
EAN 8422202224992

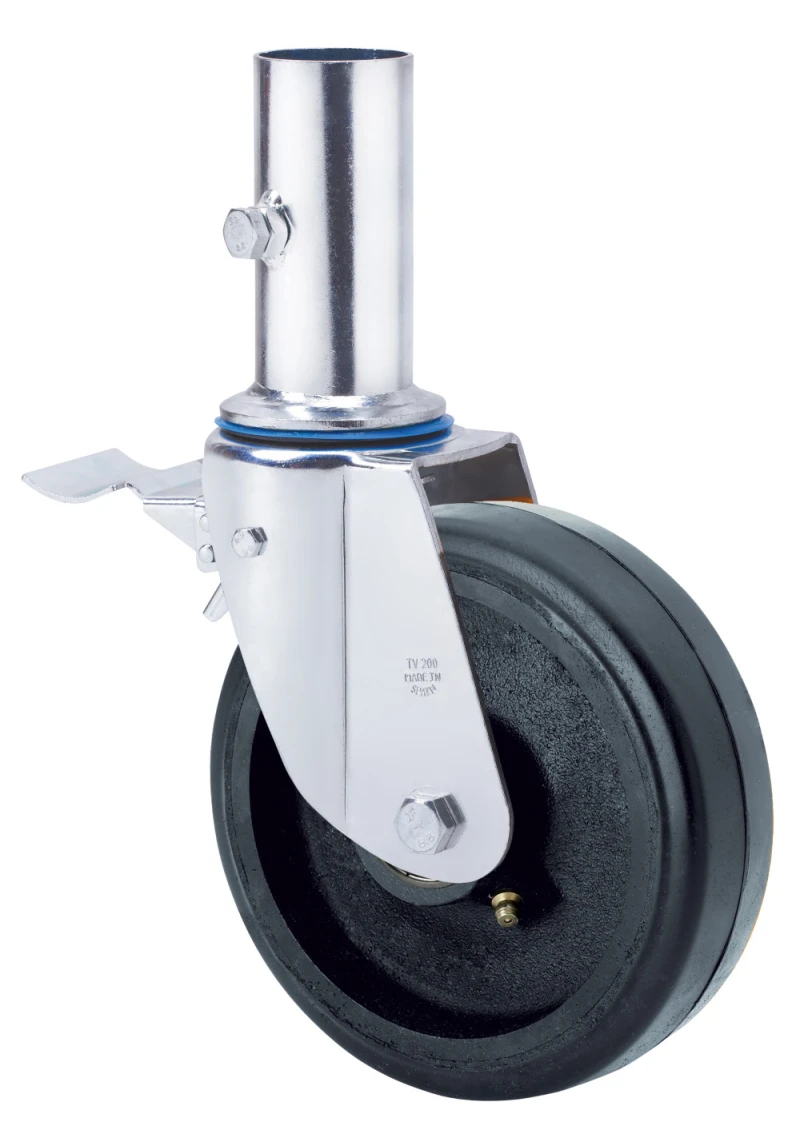

Castors with steel centre and black rubber tyre. Especially indicated to support high-loads up to 500 Kg.
It is used in: the industrial sector, materials handling in factories, metallurgical industry, public services, aeronautic sector, railway, construction, scaffolding, mobile ladders, mobile cranes, elevating platforms and mobile platforms.
Suitable for all kind of indoor or outdoor flooring surfaces.
HG: Castor suitable for mechanical traction. High protection of floors. Smooth and noiseless tread (elevating driving carts, trailers...). Industry in general.

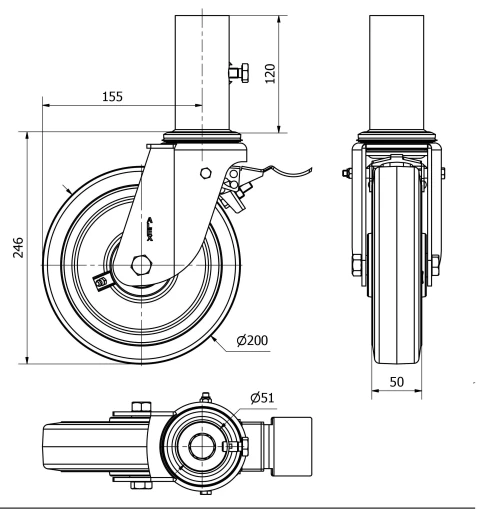

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Stem |
Braking System | Wheel Brake And Fork |
Material | Rubber |
Bearing | Ball |
Diameter (mm) | 200 |
Width of tyre (mm) | 50 |
Width x height of stem | 51x120 |
Offset (mm) | 155 |
Overall height (mm) | 246 |
Load | 500 |
Unit Weight of the wheel (kg) | 6.46 |
Volume (cm3) | 3411 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 4 mm.Finish: passivated zinc.Adjustable total brake.High load capacity.Recommended for scaff olding up to 4 metres and stable floors.Manufactured to European standard EN 12532.
-
Rolling Resistence Reasonable
-
Noise during the march Excelent
-
Floor Protection Excelent
