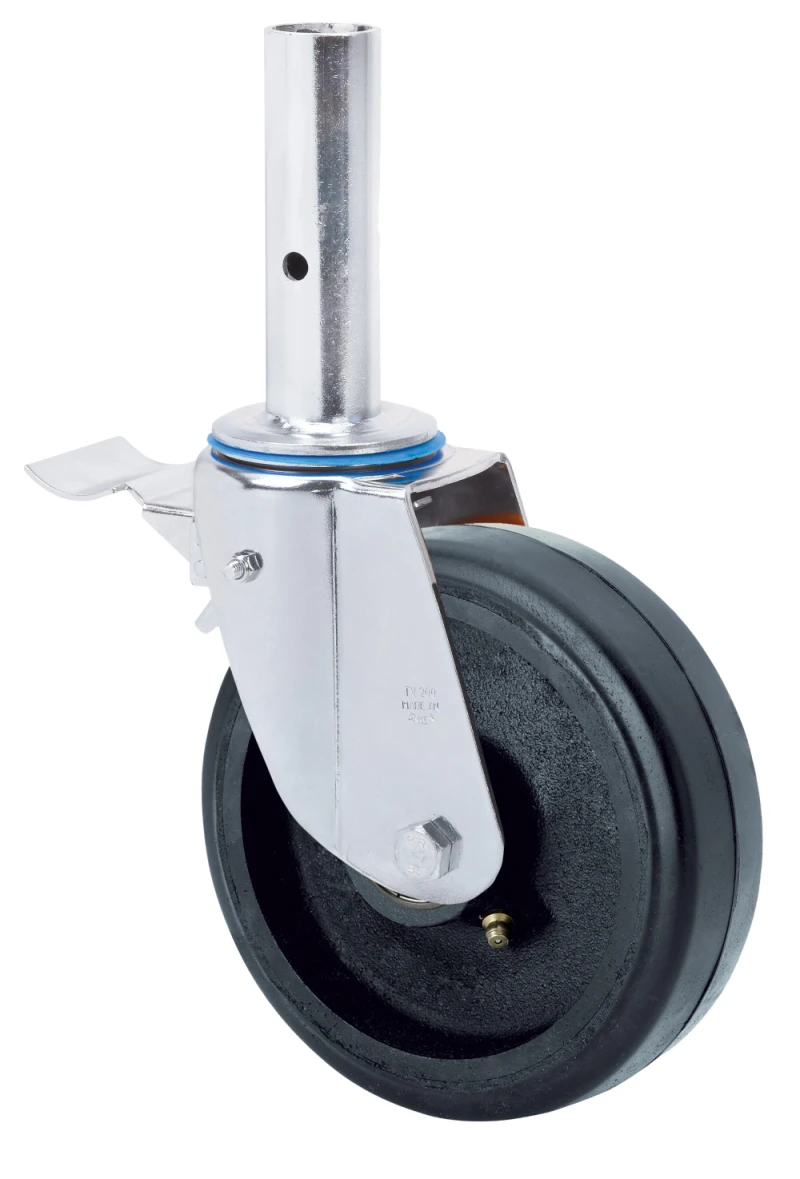

TVA SERIES-HG 2-2498

Code: 2-2498

Castors with steel centre and black rubber tyre. Especially indicated to support high-loads up to 500 Kg.

It is used in: the industrial sector, materials handling in factories, metallurgical industry, public services, aeronautic sector, railway, construction, scaffolding, mobile ladders, mobile cranes, elevating platforms and mobile platforms.

Suitable for all kind of indoor or outdoor flooring surfaces.

HG: Castor suitable for mechanical traction. High protection of floors. Smooth and noiseless tread (elevating driving carts, trailers...). Industry in general.

Components

Brackets

Made of pressed steel up to 4 mm.Finish: passivated zinc.Adjustable total brake.High load capacity.Recommended for scaff olding up to 4 metres and stable floors.Manufactured to European standard EN 12532.

Wheel

Rubber tyre on cast iron centre with grease nipple

Temperature range: -20º ÷ +60º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

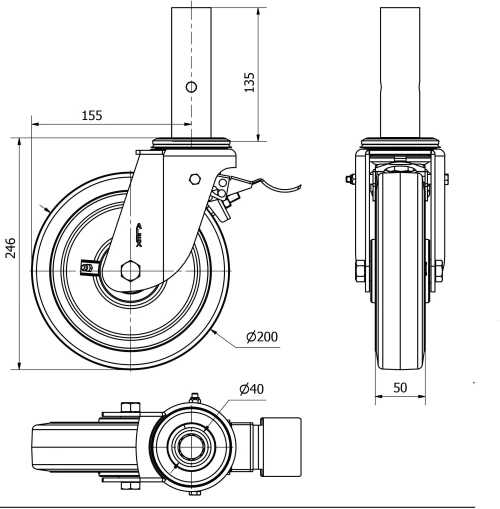

Technical Data 2-2498

EAN:

8422202224985

Housing Type:

Swivel

Fitting Type:

Stem

Braking System:

Wheel Brake And Fork

Material:

Rubber

Bearing:

Ball

Diameter (mm):

200

Width of tyre (mm):

Width x height of stem:

40x135

Offset (mm):

155

Overall height (mm):

246

Load:

500

Unit Weight of the wheel (kg):

6,6

Volume (cm³):

3411
