ZLI SERIES-UT 2-3081

Code: 2-3081

Polypropylene castors with stainless steel (AISI 304) components. Especially indicated to support high-loads up to 120 Kg.

It is used in: outdoor areas, food trolleys, canteens, dining rooms, restaurants, food industry, conveyor belts, light machinery for the construction, poultry farms, slaughterhouses, meat industry, dairy industry and chemical industry.

Suitable for mechanical engineering projects by draftsmen and project executors.

UT: undeformable and very resistant. Easy to start and move.

Components

Brackets

Made of pressed stainless steel (AISI 304) up to 2.5mm Bearings and all parts are stainless steel. Manufactured to European standards EN 12530.

Wheel

White Polypropylene wheel

Temperature range: -20º ÷ +60º

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

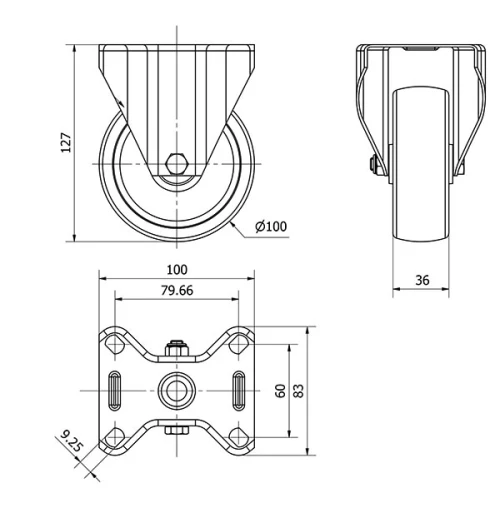

Technical Data 2-3081

EAN:

8422202230818

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polypropylene

Bearing:

Plain

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

100x80

Distance between holes (mm):

80x60

Plate hole diameter (mm):

Overall height (mm):

127

Load:

110

Unit Weight of the wheel (kg):

0,371

Volume (cm³):

1016
