Which castors do you need?
ZLI SERIES-UT 2-3087
EAN 8422202230870
Polypropylene castors with stainless steel (AISI 304) components. Especially indicated to support high-loads up to 120 Kg.
It is used in: outdoor areas, food trolleys, canteens, dining rooms, restaurants, food industry, conveyor belts, light machinery for the construction, poultry farms, slaughterhouses, meat industry, dairy industry and chemical industry.
Suitable for mechanical engineering projects by draftsmen and project executors.
UT: undeformable and very resistant. Easy to start and move.

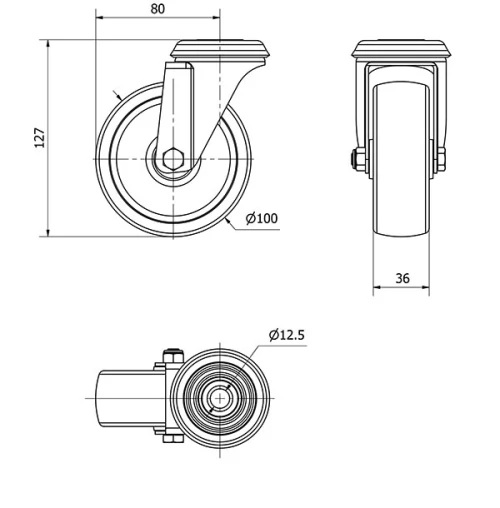

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Without Brake |
Material | Polypropylene |
Bearing | Plain |
Diameter (mm) | 100 |
Width of tyre (mm) | 36 |
Plate hole diameter (mm) | 12 |
Offset (mm) | 80 |
Overall height (mm) | 127 |
Load | 110 |
Unit Weight of the wheel (kg) | 0.403 |
Volume (cm3) | 910 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed stainless steel (AISI 304) up to 2.5mm Bearings and all parts are stainless steel. Manufactured to European standards EN 12530.
-
Rolling Resistence Very Good
-
Noise during the march Reasonable
-
Floor Protection Reasonable
