ZLI SERIES-UT 2-3088

See comparative

Code: 2-3088

Polypropylene castors with stainless steel (AISI 304) components. Especially indicated to support high-loads up to 120 Kg.

It is used in: outdoor areas, food trolleys, canteens, dining rooms, restaurants, food industry, conveyor belts, light machinery for the construction, poultry farms, slaughterhouses, meat industry, dairy industry and chemical industry.

Suitable for mechanical engineering projects by draftsmen and project executors.

UT: undeformable and very resistant. Easy to start and move.

Components

Brackets

Made of pressed stainless steel (AISI 304) up to 2.5mm Bearings and all parts are stainless steel. Manufactured to European standards EN 12530.

Wheel

White Polypropylene wheel

Temperature range: -20º ÷ +60º

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

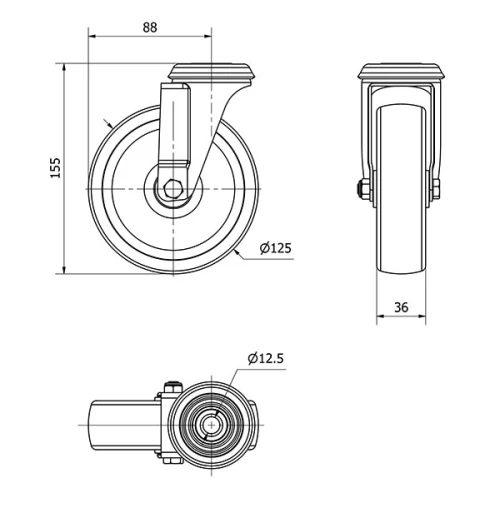

Technical Data 2-3088

EAN:

8422202230887

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Without Brake

Material:

Polypropylene

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

65º SHORE D

Bearing:

Plain

Diameter (mm):

125

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

155

Load:

120

Unit Weight of the wheel (kg):

0,429

Volume (cm³):

1190

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

2-3091
