SERIE ZVI INOX-PS

Categories

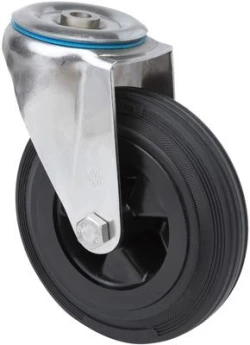

Black rubber castors with stainless steel (AISI 304) components. Especially indicated to support high-loads up to 215 Kg.

It is used in: outdoor areas, food trolleys, canteens, dining rooms, restaurants, food industry, logistics for military missions material, packaging machines, conveyor belts, stainless steel constructions, light machinery for the construction, containers, roll containers and transport cages.

Suitable for mechanical engineering projects by draftsmen and project executors.

PS: smooth and noiseless castor. High floor protection. Absorption to impacts and vibrations.

See comparative

ZVI SERIES-PS

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-1669 80 75 25 Bearing: Plain 105x80 86/80x60 8 110 77
2-1841 100 100 28 Bearing: Plain 105x80 86/80x60 8 131 91
2-1670 100 100 28 Bearing: Plain 106x86 86/80x60 8 133 94
2-4923 125 125 35 Bearing: Plain 105x80 86/80x60 8 158 104
2-1671 125 125 35 Bearing: Plain 106x86 86/80x60 8 155 107
2-1186 160 160 40 Bearing: Plain 140x110 105x80 10 205 131
2-4743 160 160 40 Bearing: Stainless Steel Roller Bearing 140x110 105x80 10 205 131
2-1188 200 215 47 Bearing: Plain 140x110 105x80 10 242 153
2-4748 200 215 47 Bearing: Stainless Steel Roller Bearing 140x110 105x80 10 242 155

ZVI SERIES-PS

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-1672 80 75 25 Bearing: Plain 107x86 80x60 8 110 --
2-1843 100 100 28 Bearing: Plain 107x86 80x60 8 131 --
2-1673 100 100 28 Bearing: Plain 107x86 80x60 8 133 --
2-4924 125 125 35 Bearing: Plain 107x86 80x60 8 158 --
2-1674 125 125 35 Bearing: Plain 107x86 80x60 8 155 --
2-1187 160 160 40 Bearing: Plain 136x116 105x80 10 205 --
2-4744 160 160 40 Bearing: Stainless Steel Roller Bearing 136x116 105x80 10 205 --
2-1189 200 215 47 Bearing: Plain 136x116 105x80 10 242 --
2-4749 200 215 47 Bearing: Stainless Steel Roller Bearing 136x116 105x80 10 242 --

ZVI SERIES-PS

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-2339 80 75 25 Bearing: Plain 105x80 86/80x60 8 110 77
2-1898 100 100 28 Bearing: Plain 105x80 86/80x60 8 131 91
2-1679 100 100 28 Bearing: Plain 106x86 86/80x60 8 133 94
2-4925 125 125 35 Bearing: Plain 105x80 86/80x60 8 158 104
2-1680 125 125 35 Bearing: Plain 106x86 86/80x60 8 155 107
2-1684 160 160 40 Bearing: Plain 140x110 105x80 10 205 131
2-4745 160 160 40 Bearing: Stainless Steel Roller Bearing 140x110 105x80 10 205 131
2-1685 200 215 47 Bearing: Plain 140x110 105x80 10 242 153
2-4750 200 215 47 Bearing: Stainless Steel Roller Bearing 140x110 105x80 10 242 155

ZVI SERIES-PS

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-1675 80 75 25 Bearing: Plain -- -- 10 104 77
2-4134 80 75 25 Bearing: Plain -- -- 12 104 77
2-1899 100 100 28 Bearing: Plain -- -- 10 127 91
2-4135 100 100 28 Bearing: Plain -- -- 12 124 91
2-1676 100 100 28 Bearing: Plain -- -- 12 128 94
2-4926 125 125 35 Bearing: Plain -- -- 12 151 104
2-1677 125 125 35 Bearing: Plain -- -- 12 151 107
2-1407 160 160 40 Bearing: Plain -- -- 12 199 131
2-4746 160 160 40 Bearing: Stainless Steel Roller Bearing -- -- 12 199 131
2-1408 200 215 47 Bearing: Plain -- -- 12 236 153
2-4751 200 215 47 Bearing: Stainless Steel Roller Bearing -- -- 12 236 155

ZVI SERIES-PS

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-2344 80 75 25 Bearing: Plain -- -- 10 104 77
2-4136 80 75 25 Bearing: Plain -- -- 12 104 77
2-1900 100 100 28 Bearing: Plain -- -- 10 127 91
2-4137 100 100 28 Bearing: Plain -- -- 12 124 91
2-1682 100 100 28 Bearing: Plain -- -- 12 128 94
2-4927 125 100 28 Bearing: Plain -- -- 12 151 104
2-1683 125 125 35 Bearing: Plain -- -- 12 151 107
2-1686 160 150 40 Bearing: Plain -- -- 12 199 131
2-1687 200 210 47 Bearing: Plain -- -- 12 236 153
2-4747 160 160 40 Bearing: Stainless Steel Roller Bearing -- -- 12 199 131
2-4752 200 215 47 Bearing: Stainless Steel Roller Bearing -- -- 12 236 155
