SERIE ZVI INOX-UT

Categories

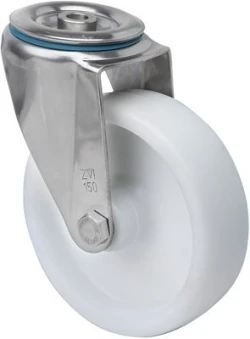

White polypropylene castors with stainless steel (AISI 304) components. Especially indicated to support high-loads up to 400 Kg.

It is used in: outdoor areas, food trolleys, canteens, dining rooms, restaurants, food industry, logistics for military missions material, packaging machines, conveyor belts, stainless steel constructions, light machinery for the construction, containers, roll containers, transport cages, poultry farms, chemical industry, bakery machines, food chains, fridges, freezer cabinets and freezers.

Suitable for mechanical engineering projects by draftsmen and project executors.

UT: undeformable and resistant. Easy to start and move.

See comparative

ZVI SERIES-UT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-1314 60 60 24 Bearing: Plain 70x55 55x42 8 84 59
2-1325 80 200 34 Bearing: Plain 105x80 86/80x60 8 110 77
2-2772 80 200 34 Bearing: Stainless Steel Roller Bearing 105x80 86/80x60 8 110 77
2-1720 100 200 36 Bearing: Plain 105x80 86/80x60 8 131 91
2-2773 100 200 36 Bearing: Stainless Steel Roller Bearing 105x80 86/80x60 8 131 91
2-1162 100 220 36 Bearing: Plain 106x86 86/80x60 8 133 94
2-2775 100 220 36 Bearing: Stainless Steel Roller Bearing 106x86 86/80x60 8 133 94
2-4943 125 250 36 Bearing: Plain 105x80 86/80x60 8 158 104
2-4948 125 250 36 Bearing: Stainless Steel Roller Bearing 105x80 86/80x60 8 158 104
2-1164 125 250 36 Bearing: Plain 106x86 86/80x60 8 155 107
2-2776 125 250 36 Bearing: Stainless Steel Roller Bearing 106x86 86/80x60 8 155 107
2-1166 150 400 45 Bearing: Plain 140x110 105x80 10 196 128
2-1168 200 500 50 Bearing: Plain 140x110 105x80 10 242 153

ZVI SERIES-UT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-1315 60 60 24 Bearing: Plain 57x52 42x26 8 84 --
2-1326 80 200 34 Bearing: Plain 107x86 80x60 8 110 --
2-2777 80 200 34 Bearing: Stainless Steel Roller Bearing 107x86 80x60 8 110 --
2-1721 100 200 36 Bearing: Plain 107x86 80x60 8 131 --
2-2778 100 200 36 Bearing: Stainless Steel Roller Bearing 107x86 80x60 8 131 --
2-1163 100 220 36 Bearing: Plain 107x86 80x60 8 133 --
2-2779 100 220 36 Bearing: Stainless Steel Roller Bearing 107x86 80x60 8 133 --
2-4944 125 250 36 Bearing: Plain 107x86 80x60 8 158 --
2-4949 125 250 36 Bearing: Stainless Steel Roller Bearing 107x86 80x60 8 158 --
2-1165 125 250 36 Bearing: Plain 107x86 80x60 8 155 --
2-2780 125 250 36 Bearing: Stainless Steel Roller Bearing 107x86 80x60 8 155 --
2-1167 150 400 45 Bearing: Plain 136x116 105x80 10 196 --
2-1169 200 500 50 Bearing: Plain 136x116 105x80 10 242 --

ZVI SERIES-UT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-2414 80 200 34 Bearing: Plain 105x80 86/80x60 8 110 77
2-2781 80 200 34 Bearing: Stainless Steel Roller Bearing 105x80 86/80x60 8 110 77
2-1837 100 200 36 Bearing: Plain 105x80 86/80x60 8 131 91
2-2774 100 200 36 Bearing: Stainless Steel Roller Bearing 105x80 86/80x60 8 131 91
2-1642 100 220 36 Bearing: Plain 106x86 86/80x60 8 133 94
2-2782 100 220 36 Bearing: Stainless Steel Roller Bearing 106x86 86/80x60 8 133 94
2-4945 125 250 36 Bearing: Plain 105x80 86/80x60 8 158 104
2-4950 125 250 36 Bearing: Stainless Steel Roller Bearing 105x80 86/80x60 8 158 104
2-1643 125 250 36 Bearing: Plain 106x86 86/80x60 8 155 107
2-2783 125 250 36 Bearing: Stainless Steel Roller Bearing 106x86 86/80x60 8 155 107
2-1644 150 400 45 Bearing: Plain 140x110 105x80 10 196 128
2-1645 200 500 50 Bearing: Plain 140x110 105x80 10 242 153

ZVI SERIES-UT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-1412 80 180 34 Bearing: Plain -- -- 10 104 77
2-2798 80 180 34 Bearing: Stainless Steel Roller Bearing -- -- 10 104 77
2-4146 80 180 34 Bearing: Plain -- -- 12 104 77
2-4147 80 180 34 Bearing: Roller -- -- 12 104 77
2-1832 100 180 36 Bearing: Plain -- -- 10 125 91
2-2799 100 180 36 Bearing: Stainless Steel Roller Bearing -- -- 10 125 91
2-4148 100 180 36 Bearing: Plain -- -- 12 124 91
2-4149 100 180 36 Bearing: Roller -- -- 12 124 91
2-1413 100 200 36 Bearing: Plain -- -- 12 128 94
2-2800 100 200 36 Bearing: Stainless Steel Roller Bearing -- -- 12 128 94
2-4946 125 220 36 Bearing: Plain -- -- 12 151 104
2-4951 125 220 36 Bearing: Stainless Steel Roller Bearing -- -- 12 151 104
2-1414 125 220 36 Bearing: Plain -- -- 12 151 107
2-2801 125 220 36 Bearing: Stainless Steel Roller Bearing -- -- 12 151 107
2-1415 150 350 45 Bearing: Plain -- -- 12 190 128
2-1416 200 400 50 Bearing: Plain -- -- 12 236 153

ZVI SERIES-UT

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-2415 80 180 34 Bearing: Plain -- -- 10 104 77
2-2802 80 180 34 Bearing: Stainless Steel Roller Bearing -- -- 10 104 77
2-4150 80 180 34 Bearing: Plain -- -- 12 104 77
2-4151 80 180 34 Bearing: Roller -- -- 12 104 77
2-1838 100 180 36 Bearing: Plain -- -- 10 125 91
2-2803 100 150 36 Bearing: Stainless Steel Roller Bearing -- -- 10 125 91
2-4152 100 180 36 Bearing: Plain -- -- 12 124 91
2-4153 100 180 36 Bearing: Roller -- -- 12 124 91
2-1648 100 200 36 Bearing: Plain -- -- 12 128 94
2-2804 100 200 36 Bearing: Stainless Steel Roller Bearing -- -- 12 128 94
2-4947 125 220 36 Bearing: Plain -- -- 12 151 104
2-4952 125 220 36 Bearing: Stainless Steel Roller Bearing -- -- 12 151 104
2-1649 125 220 36 Bearing: Plain -- -- 12 151 107
2-2805 125 220 36 Bearing: Stainless Steel Roller Bearing -- -- 12 151 107
2-1650 150 350 45 Bearing: Plain -- -- 12 190 128
2-1651 200 400 50 Bearing: Plain -- -- 12 236 153
