ZVI SERIES-UT 2-1326

Code: 2-1326

White polypropylene castors with stainless steel (AISI 304) components. Especially indicated to support high-loads up to 400 Kg.

It is used in: outdoor areas, food trolleys, canteens, dining rooms, restaurants, food industry, logistics for military missions material, packaging machines, conveyor belts, stainless steel constructions, light machinery for the construction, containers, roll containers, transport cages, poultry farms, chemical industry, bakery machines, food chains, fridges, freezer cabinets and freezers.

Suitable for mechanical engineering projects by draftsmen and project executors.

UT: undeformable and resistant. Easy to start and move.

Components

Brackets

Made of high-quality pressed stainless steel (AISI 304) up to 3 mm. Bracket made completely of stainless steel, corrosion-free, resistant to petrol, diesel,oils and grease. Manufactured to European standards EN 12530/12532.

Wheel

White Polypropylene wheel

Temperature range: -20º ÷ +60º

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

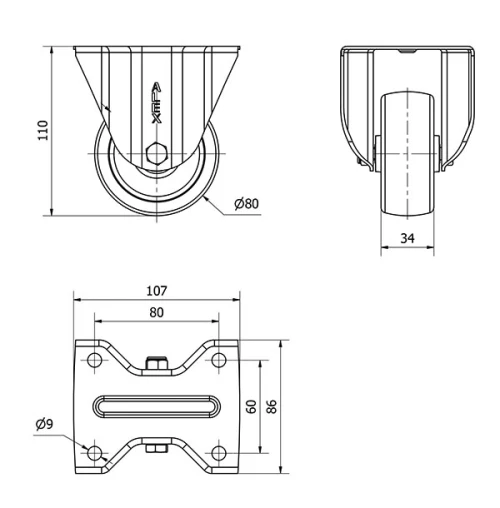

Technical Data 2-1326

EAN:

8422202213262

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polypropylene

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

107x86

Distance between holes (mm):

80x60

Plate hole diameter (mm):

Overall height (mm):

110

Load:

200

Unit Weight of the wheel (kg):

0,383

Volume (cm³):

1012
