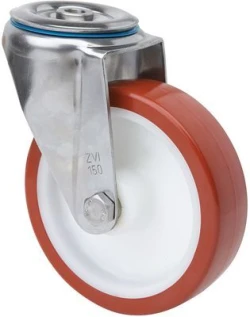

SERIE ZVI INOX-POL

Injected polyurethane castors with stainless steel (AISI 304) components. Especially indicated to support high-loads up to 300 Kg.

It is used in: outdoor areas, food trolleys, canteens, dining rooms, restaurants, food industry, logistics for military missions material, packaging machines, conveyor belts, stainless steel constructions, light machinery for the construction, containers, roll containers, transport cages, poultry farms, chemical industry, food chains, fridges, freezer cabinets and freezers.

Suitable for mechanical engineering projects by draftsmen and project executors.

POL: long useful life. High resistance to oils and grease. Noiseless, clean and undeformable.

See comparative

ZVI SERIES-POL

Code
2-2633	60	70	22	70x55	55x42	8	84	59
2-2416	80	150	32	105x80	86/80x60	8	110	77
2-2929	80	150	32	105x80	86/80x60	8	110	77
2-2417	100	180	32	105x80	86/80x60	8	131	91
2-2975	100	180	32	105x80	86/80x60	8	131	91
2-2418	100	200	32	106x86	86/80x60	8	133	94
2-2930	100	200	32	106x86	86/80x60	8	133	94
2-4953	125	220	32	105x80	86/80x60	8	158	104
2-4958	125	220	32	105x80	86/80x60	10	158	104
2-2419	125	250	32	106x86	86/80x60	8	155	107
2-2931	125	250	32	106x86	86/80x60	8	155	107
2-2420	150	300	42	140x110	105x80	10	196	128
2-3469	150	300	42	140x110	105x80	10	196	128
2-2421	200	400	50	140x110	105x80	10	242	153
2-3470	200	400	50	140x110	105x80	10	242	153

ZVI SERIES-POL

Code
2-2634	60	70	22	57x52	42x26	8	84	--
2-2422	80	150	32	107x86	80x60	8	110	--
2-2932	80	150	32	107x86	80x60	8	110	--
2-2423	100	180	32	107x86	80x60	8	131	--
2-2976	100	180	32	107x86	80x60	8	131	--
2-2424	100	200	32	107x86	80x60	8	133	--
2-2933	100	200	32	107x86	80x60	8	133	--
2-4954	125	220	32	107x86	80x60	8	158	--
2-4959	125	220	32	107x86	80x60	8	158	--
2-2425	125	250	32	107x86	80x60	8	155	--
2-2934	125	250	32	107x86	80x60	8	155	--
2-2426	150	300	42	136x116	105x80	10	196	--
2-3471	150	300	42	136x116	105x80	10	196	--
2-2427	200	400	50	136x116	105x80	10	242	--
2-3472	200	400	50	136x116	105x80	10	242	--

ZVI SERIES-POL

Code
2-2428	80	150	32	105x80	86/80x60	8	110	77
2-2935	80	150	32	105x80	86/80x60	8	110	77
2-2429	100	180	32	105x80	86/80x60	8	131	91
2-2977	100	180	32	105x80	86/80x60	8	131	91
2-2430	100	200	32	106x86	86/80x60	8	133	94
2-2936	100	200	32	106x86	86/80x60	8	133	94
2-4955	125	220	32	105x80	86/80x60	8	158	104
2-4960	125	220	32	105x80	86/80x60	8	158	104
2-2431	125	250	32	106x86	86/80x60	8	155	107
2-2937	125	250	32	106x86	86/80x60	8	155	107
2-2432	150	300	42	140x110	105x80	10	196	128
2-3473	150	300	42	140x110	105x80	10	196	128
2-2433	200	400	50	140x110	105x80	10	242	153
2-3474	200	400	50	140x110	105x80	10	242	153

ZVI SERIES-POL

Code
2-2434	80	130	32	--	--	10	104	77
2-2938	80	130	32	--	--	10	104	77
2-4160	80	130	32	--	--	12	104	77
2-4161	80	130	32	--	--	12	104	77
2-2435	100	130	32	--	--	10	125	91
2-2978	100	130	32	--	--	10	125	91
2-4162	100	130	32	--	--	12	124	91
2-4163	100	130	32	--	--	12	124	91
2-2436	100	150	32	--	--	12	128	94
2-2939	100	150	32	--	--	12	128	94
2-4956	125	200	32	--	--	12	151	104
2-4961	125	200	32	--	--	12	151	104
2-2437	125	220	32	--	--	12	151	107
2-2940	125	220	32	--	--	12	151	107
2-2438	150	280	42	--	--	12	190	128
2-3475	150	280	42	--	--	12	190	128
2-2439	200	300	50	--	--	12	236	153
2-3476	200	300	50	--	--	12	236	153

ZVI SERIES-POL

Code
2-2440	80	130	32	--	--	10	104	77
2-2941	80	130	32	--	--	10	104	77
2-4164	80	130	32	--	--	12	104	77
2-4165	80	130	32	--	--	12	104	77
2-2441	100	130	32	--	--	10	125	91
2-2979	100	130	32	--	--	10	125	91
2-4166	100	130	32	--	--	12	124	91
2-4167	100	130	32	--	--	12	124	91
2-2442	100	150	32	--	--	12	128	94
2-2942	100	150	32	--	--	12	128	94
2-4957	125	200	32	--	--	12	151	104
2-4962	125	200	32	--	--	12	151	104
2-2443	125	220	32	--	--	12	151	107
2-2943	125	220	32	--	--	12	151	107
2-2444	150	280	42	--	--	12	190	128
2-3477	150	280	42	--	--	12	190	128
2-3335	200	300	50	--	--	12	236	153
2-3478	200	300	50	--	--	12	236	153

Other castors SERIE ZVI INOX

SERIE ZVI INOX-PS

80-200 mm

75-215 kg

SERIE ZVI INOX-PGA

60-125 mm

40-135 kg

SERIE ZVI INOX-PS Grey

160-200 mm

160-215 kg

SERIE ZVI INOX-PGZ

80-200 mm

80-180 kg

SERIE ZVI INOX-UT

60-200 mm

60-500 kg

SERIE ZVI INOX-TN

80-200 mm

200-600 kg

SERIE ZVI-INOX FT

80-200 mm

200-600 kg

SERIE ZVI INOX-PO

80-200 mm

150-600 kg

SERIE ZVI INOX-POA

80-200 mm

120-300 kg

SERIE ZVI INOX-TD

80-200 mm

200-600 kg

SERIE ZVI INOX-TT

80-100 mm

100-125 kg

SERIE ZVI INOX-THG

100-100 mm

100-100 kg
