Which castors do you need?
ZVI SERIES-POL 2-2935
EAN 8422202229355
Injected polyurethane castors with stainless steel (AISI 304) components. Especially indicated to support high-loads up to 300 Kg.
It is used in: outdoor areas, food trolleys, canteens, dining rooms, restaurants, food industry, logistics for military missions material, packaging machines, conveyor belts, stainless steel constructions, light machinery for the construction, containers, roll containers, transport cages, poultry farms, chemical industry, food chains, fridges, freezer cabinets and freezers.
Suitable for mechanical engineering projects by draftsmen and project executors.
POL: long useful life. High resistance to oils and grease. Noiseless, clean and undeformable.

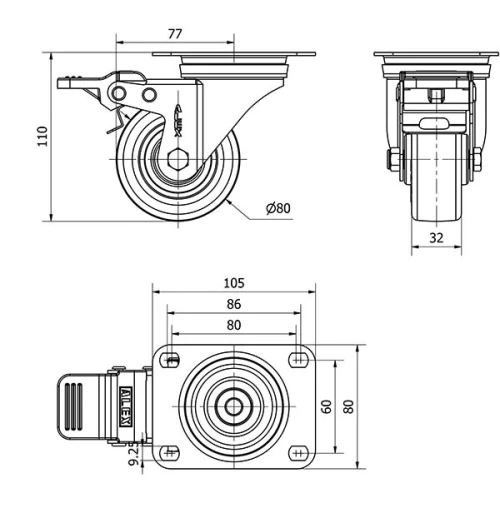

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake And Fork |
Material | Polyurethane |
Hardness of tread | 95º SHORE A |
Bearing | Stainless Steel Roller Bearing |
Diameter (mm) | 80 |
Width of tyre (mm) | 32 |
Plate dimensions (mm) | 105x80 |
Distance between holes (mm) | 86/80x60 |
Plate hole diameter (mm) | 8 |
Offset (mm) | 77 |
Overall height (mm) | 110 |
Load | 100 |
Unit Weight of the wheel (kg) | 0.705 |
Volume (cm3) | 1509 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of high-quality pressed stainless steel (AISI 304) up to 3 mm. Bracket made completely of stainless steel, corrosion-free, resistant to petrol, diesel,oils and grease. Manufactured to European standards EN 12530/12532.
-
Rolling Resistence Very Good
-
Noise during the march Very Good
-
Floor Protection Very Good
