SERIE ZVI INOX-PGZ

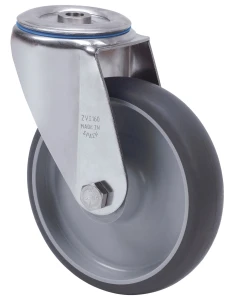

Grey injected rubber castors with stainless steel (AISI 304) components. Especially indicated to support high-loads up to 180 Kg.

It is used in: outdoor areas, food trolleys, canteens, dining rooms, restaurants, food industry, logistics for military missions material, packaging machines, conveyor belts, stainless steel constructions, light machinery for the construction, containers, roll containers and transport cages.

Suitable for mechanical engineering projects by draftsmen and project executors.

PGZ: does not leave marks on floor. Easy to move with load.

See comparative

ZVI SERIES-PGZ

Code
2-3260	80	80	28	105x80	86/80x60	8	110	77
2-3261	80	80	28	105x80	86/80x60	8	110	77
2-3262	100	100	30	105x80	86/80x60	8	131	91
2-3263	100	100	30	105x80	86/80x60	8	131	91
2-3264	100	100	30	106x86	86/80x60	8	133	94
2-3265	100	100	30	106x86	86/80x60	8	133	94
2-4933	125	120	32	105x80	86/80x60	8	158	104
2-4938	125	120	32	105x80	86/80x60	8	158	104
2-3266	125	130	32	106x86	86/80x60	8	155	107
2-3267	125	120	32	106x86	86/80x60	8	155	107
2-3268	160	160	38	140x110	105x80	10	205	131
2-3269	200	180	45	140x110	105x80	10	242	153

ZVI SERIES-PGZ

Code
2-3270	80	80	28	107x86	80x60	8	110	--
2-3271	80	80	28	107x86	80x60	8	110	--
2-3272	100	100	30	107x86	80x60	8	131	--
2-3273	100	100	30	107x86	80x60	8	131	--
2-3274	100	100	30	107x86	80x60	8	133	--
2-3275	100	100	30	107x86	80x60	8	133	--
2-4934	125	120	32	107x86	80x60	8	158	--
2-4939	125	120	32	107x86	80x60	8	158	--
2-3276	125	130	32	107x86	80x60	8	155	--
2-3277	125	120	32	107x86	80x60	8	155	--
2-3278	160	160	38	140x110	105x80	10	205	--
2-3279	200	180	45	136x116	105x80	10	242	--

ZVI SERIES-PGZ

Code
2-3280	80	80	28	105x80	86/80x60	8	110	77
2-3281	80	80	28	105x80	86/80x60	8	110	77
2-3282	100	100	30	105x80	86/80x60	8	131	91
2-3283	100	100	30	105x80	86/80x60	8	131	91
2-3284	100	100	30	106x86	86/80x60	8	133	94
2-3285	100	100	30	106x86	86/80x60	8	133	94
2-4935	125	120	32	105x80	86/80x60	8	158	104
2-4940	125	120	32	105x80	86/80x60	8	158	104
2-3286	125	130	32	106x86	86/80x60	8	155	107
2-3287	125	120	32	106x86	86/80x60	8	155	107
2-3288	160	160	38	140x110	105x80	10	205	131
2-3289	200	180	45	140x110	105x80	10	242	153

ZVI SERIES-PGZ

Code
2-3290	80	80	28	--	--	10	104	77
2-4142	80	80	28	--	--	12	104	77
2-3291	80	80	28	--	--	10	104	77
2-4571	80	80	28	--	--	12	104	77
2-3292	100	100	30	--	--	10	125	91
2-4143	100	100	30	--	--	12	124	91
2-3293	100	100	30	--	--	10	124	91
2-4575	100	100	30	--	--	12	124	91
2-3294	100	100	30	--	--	12	128	94
2-3295	100	100	30	--	--	12	128	94
2-4936	125	120	32	--	--	12	151	104
2-4941	125	120	32	--	--	12	151	104
2-3296	125	130	32	--	--	12	151	107
2-3297	125	120	32	--	--	12	151	107
2-3298	160	160	38	--	--	12	199	131
2-3299	200	180	45	--	--	12	236	153

ZVI SERIES-PGZ

Code
2-3300	80	80	28	--	--	10	104	77
2-4144	80	80	28	--	--	12	104	77
2-3301	80	80	28	--	--	10	104	77
2-4572	80	80	28	--	--	12	104	77
2-3302	100	100	30	--	--	10	125	91
2-4145	100	100	30	--	--	12	124	91
2-3303	100	100	30	--	--	10	124	91
2-4576	100	100	30	--	--	12	124	91
2-3304	100	100	30	--	--	12	128	94
2-3305	100	100	30	--	--	12	128	94
2-4937	125	120	32	--	--	12	151	104
2-4942	125	120	32	--	--	12	151	104
2-3306	125	130	32	--	--	12	151	107
2-3307	125	120	32	--	--	12	151	107
2-3308	160	160	38	--	--	12	199	131
2-3309	200	180	45	--	--	12	236	153

Other castors SERIE ZVI INOX

SERIE ZVI INOX-PS

80-200 mm

75-215 kg

SERIE ZVI INOX-PGA

60-125 mm

40-135 kg

SERIE ZVI INOX-PS Grey

160-200 mm

160-215 kg

SERIE ZVI INOX-UT

60-200 mm

60-500 kg

SERIE ZVI INOX-TN

80-80 mm

250-250 kg

SERIE ZVI-INOX FT

80-200 mm

200-600 kg

SERIE ZVI INOX-PO

80-200 mm

150-600 kg

SERIE ZVI INOX-POL

60-200 mm

70-400 kg

SERIE ZVI INOX-POA

80-200 mm

120-300 kg

SERIE ZVI INOX-TD

80-200 mm

200-600 kg

SERIE ZVI INOX-TT

80-100 mm

100-125 kg

SERIE ZVI INOX-THG

100-100 mm

100-100 kg
