Grey injected rubber castors with stainless steel (AISI 304) components. Especially indicated to support high-loads up to 180 Kg.
It is used in: outdoor areas, food trolleys, canteens, dining rooms, restaurants, food industry, logistics for military missions material, packaging machines, conveyor belts, stainless steel constructions, light machinery for the construction, containers, roll containers and transport cages.
Suitable for mechanical engineering projects by draftsmen and project executors.
PGZ: does not leave marks on floor. Easy to move with load.

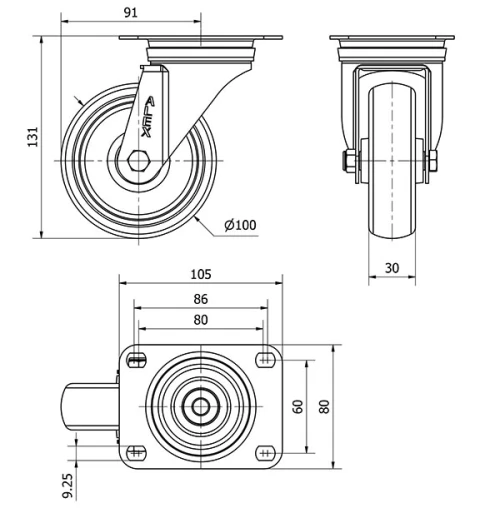

|Braking System||Without Brake|
|Width of tyre (mm)||30|
|Plate dimensions (mm)||105x80|
|Distance between holes (mm)||86/80x60|
|Plate hole diameter (mm)||8|
|Overall height (mm)||131|
|Unit Weight of the wheel (kg)||0.58|
Made of high-quality pressed stainless steel (AISI 304) up to 3 mm. Bracket made completely of stainless steel, corrosion-free, resistant to petrol, diesel,oils and grease. Manufactured to European standards EN 12530/12532.
Injected rubber tyre on polypropylene centre
Rolling Resistence Good
Noise during the march Very Good
Floor Protection Very Good
