ZVI SERIES-PGZ 2-3283

Code: 2-3283

Grey injected rubber castors with stainless steel (AISI 304) components. Especially indicated to support high-loads up to 180 Kg.

It is used in: outdoor areas, food trolleys, canteens, dining rooms, restaurants, food industry, logistics for military missions material, packaging machines, conveyor belts, stainless steel constructions, light machinery for the construction, containers, roll containers and transport cages.

Suitable for mechanical engineering projects by draftsmen and project executors.

PGZ: does not leave marks on floor. Easy to move with load.

Components

Brackets

Made of high-quality pressed stainless steel (AISI 304) up to 3 mm. Bracket made completely of stainless steel, corrosion-free, resistant to petrol, diesel,oils and grease. Manufactured to European standards EN 12530/12532.

Wheel

Injected rubber tyre on polypropylene centre

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

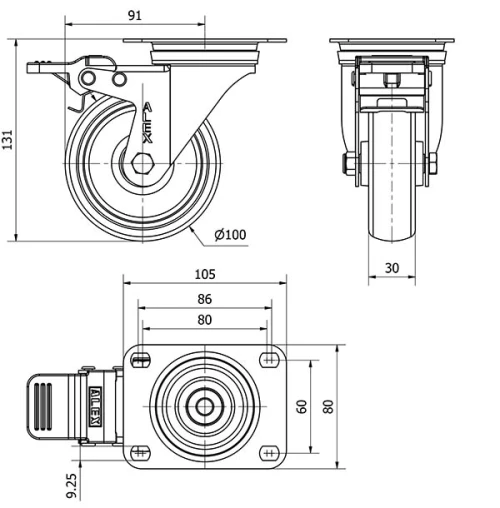

Technical Data 2-3283

EAN:

8422202232836

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Rubber

Bearing:

Stainless Steel Roller Bearing

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

105x80

Distance between holes (mm):

86/80x60

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

131

Load:

100

Unit Weight of the wheel (kg):

0,702
