Which castors do you need?
ZVI SERIES-PGZ 2-3299
EAN 8422202232997
Grey injected rubber castors with stainless steel (AISI 304) components. Especially indicated to support high-loads up to 180 Kg.
It is used in: outdoor areas, food trolleys, canteens, dining rooms, restaurants, food industry, logistics for military missions material, packaging machines, conveyor belts, stainless steel constructions, light machinery for the construction, containers, roll containers and transport cages.
Suitable for mechanical engineering projects by draftsmen and project executors.
PGZ: does not leave marks on floor. Easy to move with load.

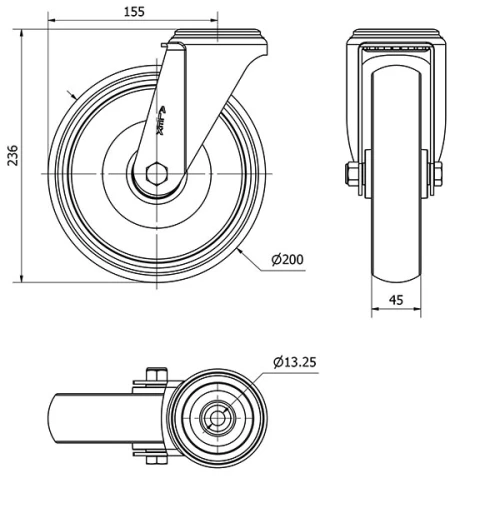

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Without Brake |
Material | Rubber |
Bearing | Plain |
Diameter (mm) | 200 |
Width of tyre (mm) | 45 |
Plate hole diameter (mm) | 12 |
Offset (mm) | 153 |
Overall height (mm) | 236 |
Load | 180 |
Unit Weight of the wheel (kg) | 1.782 |
Volume (cm3) | 4263 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of high-quality pressed stainless steel (AISI 304) up to 3 mm. Bracket made completely of stainless steel, corrosion-free, resistant to petrol, diesel,oils and grease. Manufactured to European standards EN 12530/12532.
Injected rubber tyre on polypropylene centre
-
Rolling Resistence Good
-
Noise during the march Very Good
-
Floor Protection Very Good
