ZVI SERIES-PGZ 2-3308

Code: 2-3308

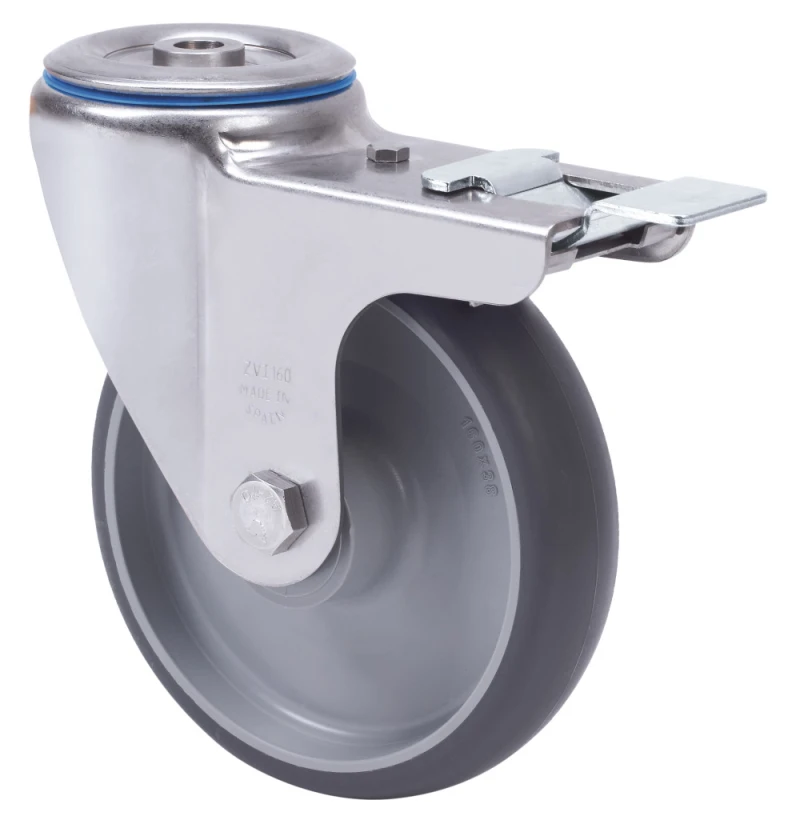

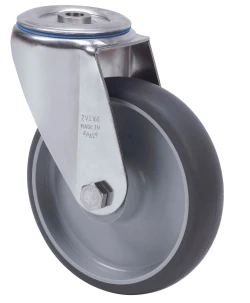

Grey injected rubber castors with stainless steel (AISI 304) components. Especially indicated to support high-loads up to 180 Kg.

It is used in: outdoor areas, food trolleys, canteens, dining rooms, restaurants, food industry, logistics for military missions material, packaging machines, conveyor belts, stainless steel constructions, light machinery for the construction, containers, roll containers and transport cages.

Suitable for mechanical engineering projects by draftsmen and project executors.

PGZ: does not leave marks on floor. Easy to move with load.

Components

Brackets

Made of high-quality pressed stainless steel (AISI 304) up to 3 mm. Bracket made completely of stainless steel, corrosion-free, resistant to petrol, diesel,oils and grease. Manufactured to European standards EN 12530/12532.

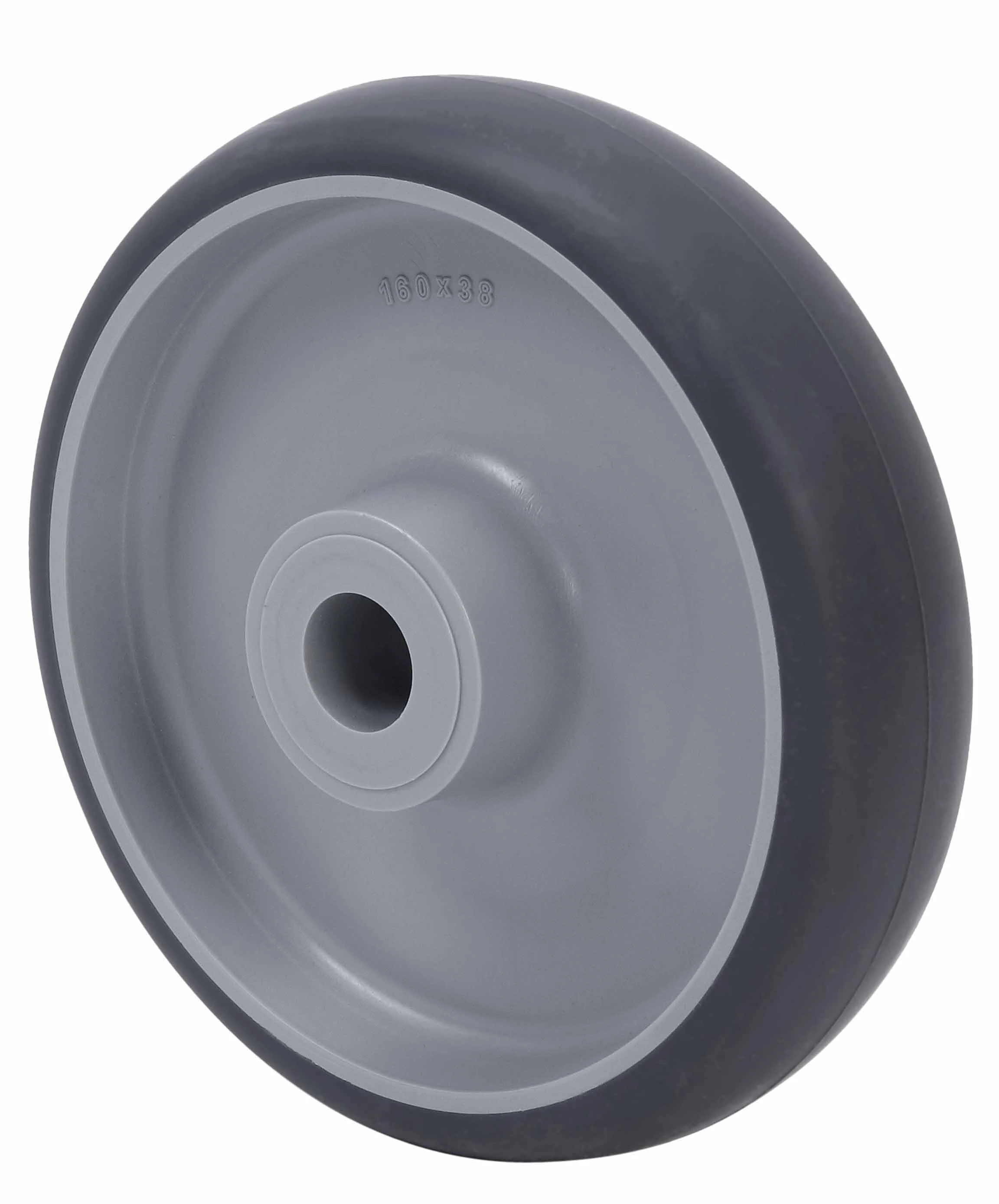

Wheel

Injected rubber tyre on polypropylene centre

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

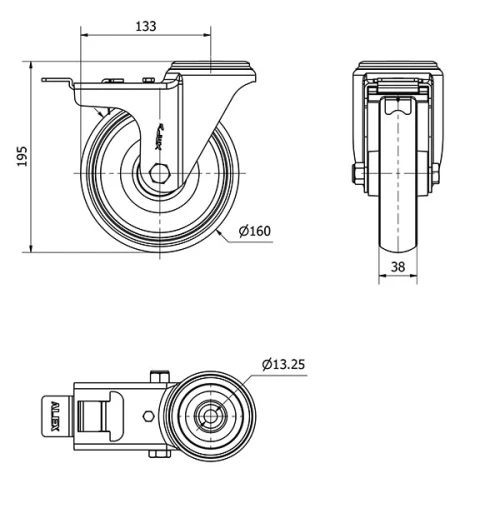

Technical Data 2-3308

EAN:

8422202233086

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Wheel Brake And Fork

Material:

Rubber

Bearing:

Plain

Diameter (mm):

160

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

131

Overall height (mm):

199

Load:

160

Unit Weight of the wheel (kg):

1,581

Volume (cm³):

3939

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

2-3298
