ZVI SERIES-UT 2-2783

Code: 2-2783

White polypropylene castors with stainless steel (AISI 304) components. Especially indicated to support high-loads up to 400 Kg.

It is used in: outdoor areas, food trolleys, canteens, dining rooms, restaurants, food industry, logistics for military missions material, packaging machines, conveyor belts, stainless steel constructions, light machinery for the construction, containers, roll containers, transport cages, poultry farms, chemical industry, bakery machines, food chains, fridges, freezer cabinets and freezers.

Suitable for mechanical engineering projects by draftsmen and project executors.

UT: undeformable and resistant. Easy to start and move.

Components

Brackets

Made of high-quality pressed stainless steel (AISI 304) up to 3 mm. Bracket made completely of stainless steel, corrosion-free, resistant to petrol, diesel,oils and grease. Manufactured to European standards EN 12530/12532.

Wheel

White Polypropylene wheel

Temperature range: -20º ÷ +60º

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

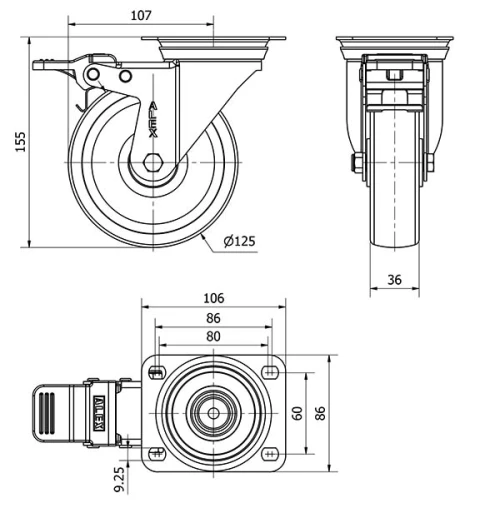

Technical Data 2-2783

EAN:

8422202227832

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Polypropylene

Bearing:

Stainless Steel Roller Bearing

Diameter (mm):

125

Width of tyre (mm):

Plate dimensions (mm):

106x86

Distance between holes (mm):

86/80x60

Plate hole diameter (mm):

Offset (mm):

107

Overall height (mm):

155

Load:

250

Unit Weight of the wheel (kg):

0,84

Volume (cm³):

2493

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
