SL SERIES-TA 4-0794
EAN 8422202407944

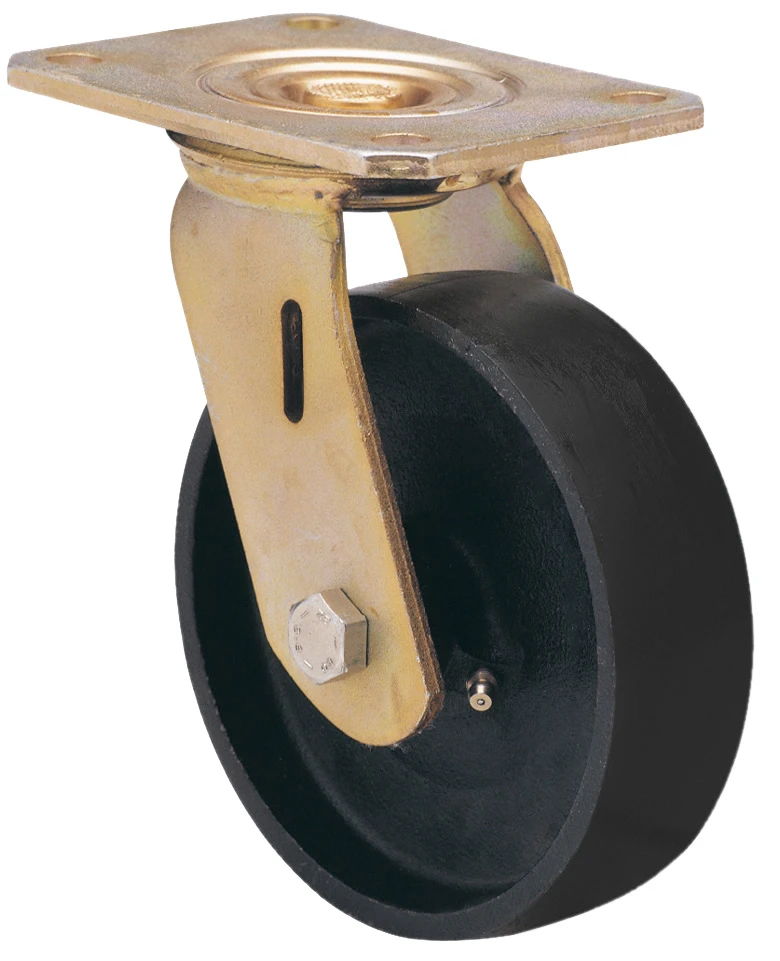

Steel castors, especially indicated to support high-loads up to 600 Kg.
It is applied in furnaces that withstand high temperatures (-40° to +300°), heavy machinery in the construction sector.
It is used in: industrial sectors, automobile factories, food industry
TA: very tough work conditions where the existence of cutting objects, chemical products or high temperatures would destroy other kind of castors. Heavy duty.
For temperatures above 200ºC, load (Kg) should be reduced by 40%.

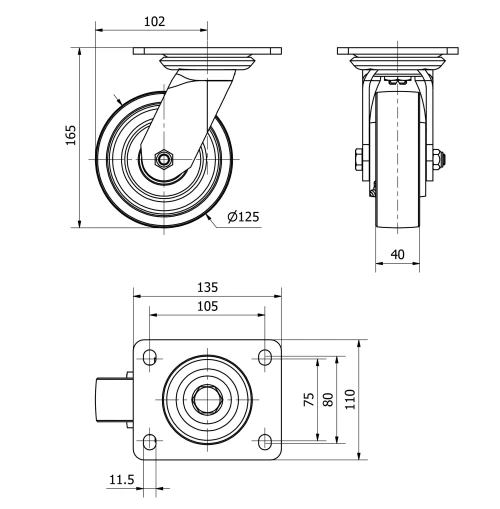

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Cast Iron |
Bearing | Ball |
Diameter (mm) | 125 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 135x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 102 |
Overall height (mm) | 165 |
Load | 500 |
Unit Weight of the wheel (kg) | 3.475 |
Volume (cm3) | 3076 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of welded steel up to 6 mm.Finish: Passivated zinc.Swivel head with a hardened double ball raceways to ensure durability and longevity of the castor.Manufactured to European standard EN 12532.
-
Rolling Resistence Excelent
-
Noise during the march Sufficient
-
Floor Protection Sufficient
