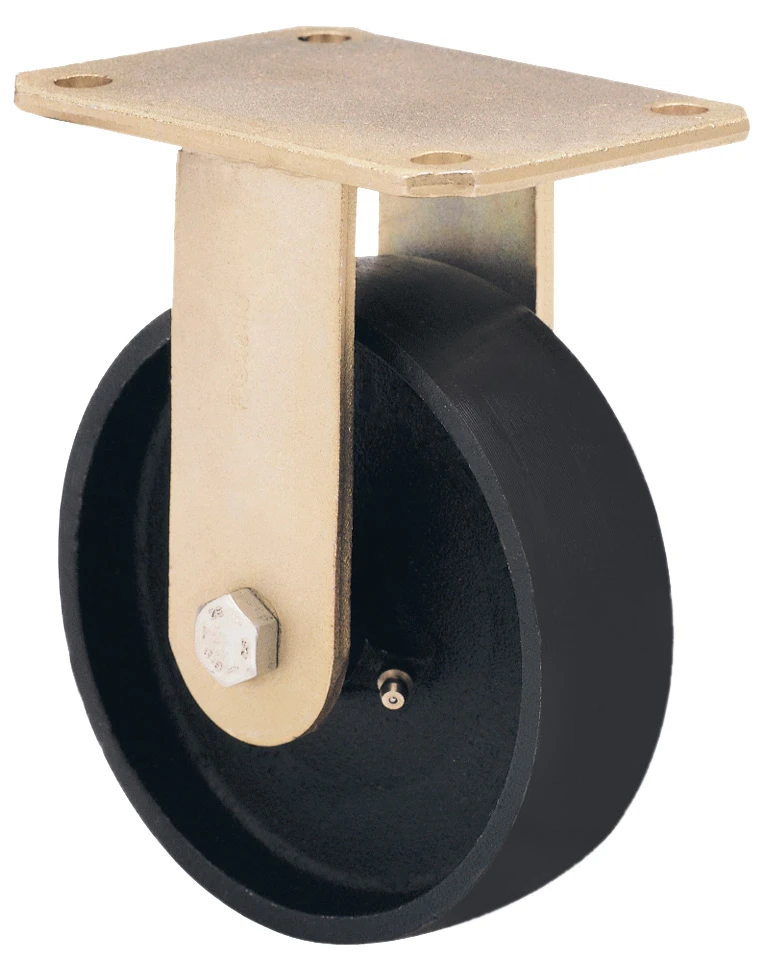

SL SERIES-TA 4-0861

Code: 4-0861

Steel castors, especially indicated to support high-loads up to 600 Kg.

It is applied in furnaces that withstand high temperatures (-40° to +300°), heavy machinery in the construction sector.

It is used in: industrial sectors, automobile factories, food industry

TA: very tough work conditions where the existence of cutting objects, chemical products or high temperatures would destroy other kind of castors. Heavy duty.

For temperatures above 200ºC, load (Kg) should be reduced by 40%.

Components

Brackets

Made of welded steel up to 6 mm.Finish: Passivated zinc.Swivel head with a hardened double ball raceways to ensure durability and longevity of the castor.Manufactured to European standard EN 12532.

Wheel

Cast iron wheel

Temperature range: -40º ÷ +300º

Rolling Resistence Excelent

Noise during the march Sufficient

Floor Protection Sufficient

Technical Data 4-0861

EAN:

8422202408613

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Cast Iron

Bearing:

Plain

Diameter (mm):

200

Width of tyre (mm):

Plate dimensions (mm):

135x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Overall height (mm):

241

Load:

600

Unit Weight of the wheel (kg):

5,785

Volume (cm³):

3579
