SERIE SLR-AUSB 2-4184
EAN 8422202241845

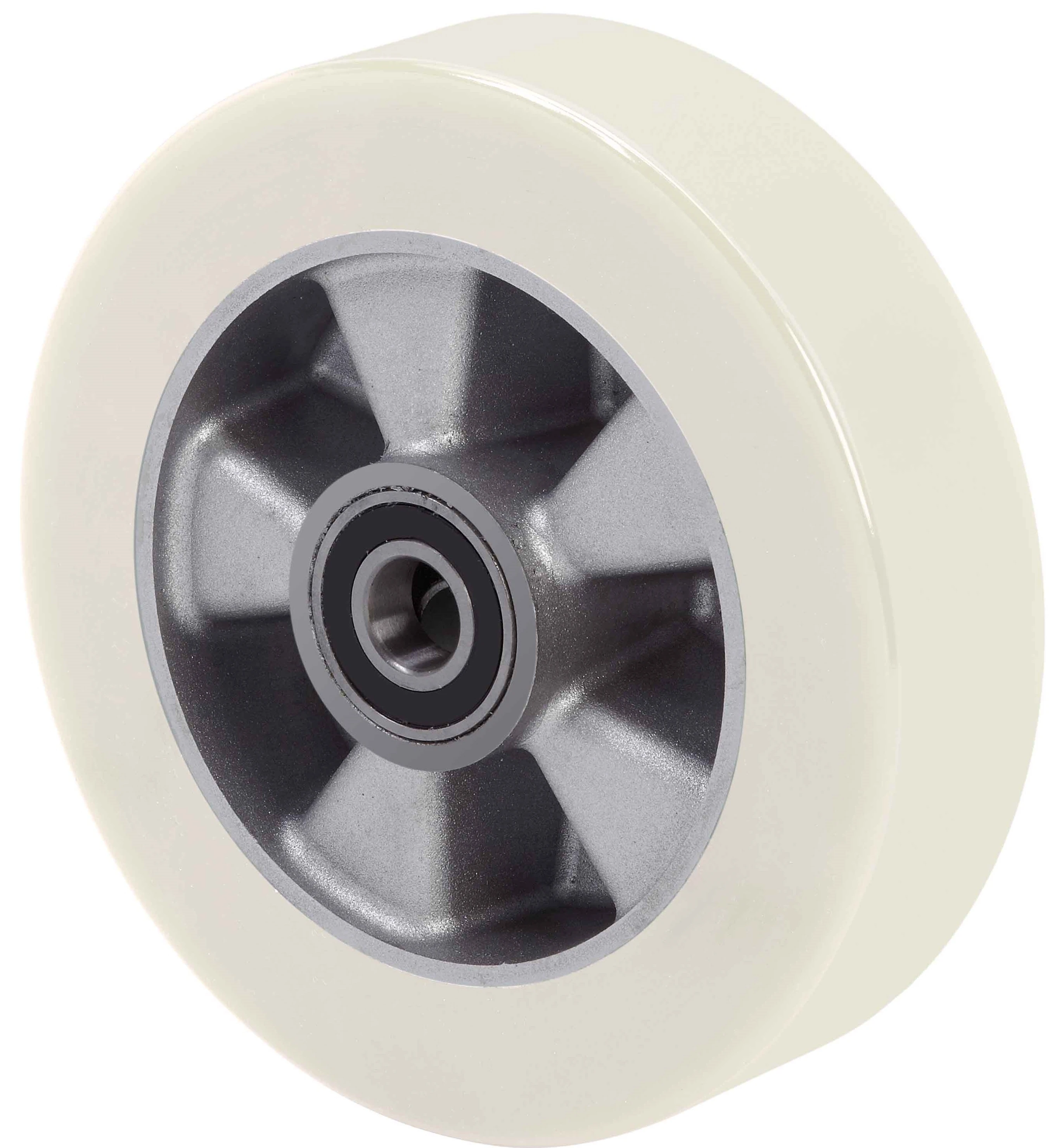

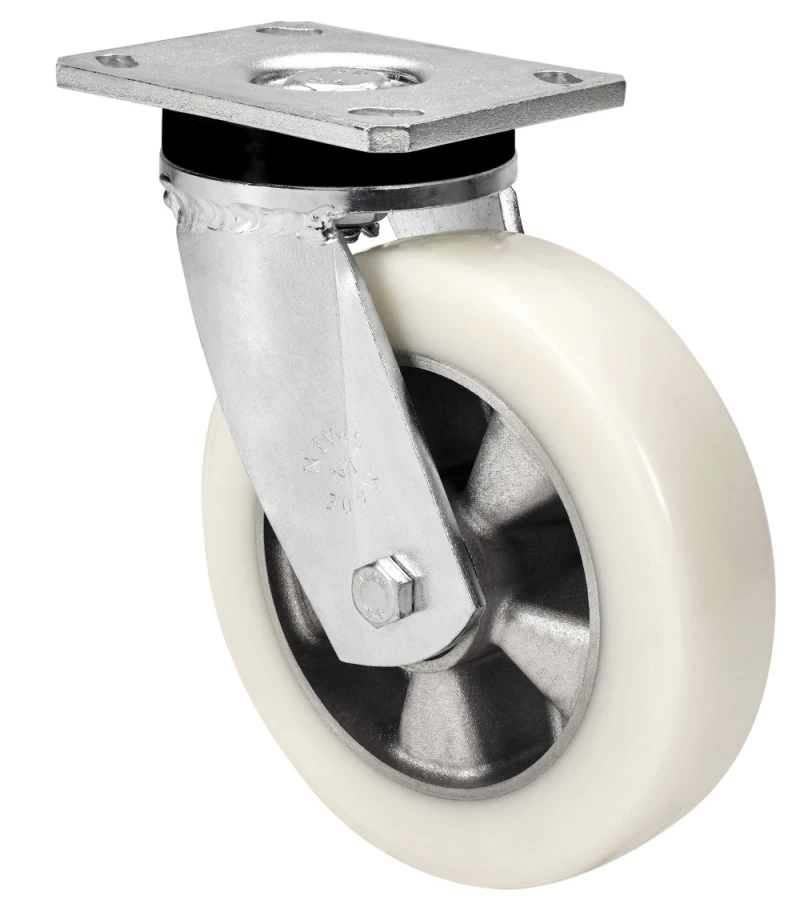

Castors with aluminium centre and white cast poluyrethane tyre with a hardness of 88º Shore A, especially indicated to support high-loads up to 650 Kg.
It is used in: logistics transport tools, outdoor areas, carbody factories, internal logistics, mobile platforms, elevating platforms, logistics for military missions material, heavy machinery, mobile cranes, elevating tables, carts, equipments and industrial areas.
Suitable for mechanical engineering projects by draftsmen and project executors.
AUSB: recommended for speed displacements (up to 16 Km/h.) High absorption to impacts. Unfavourable flooring surfaces conditions. Rough surfaces, broken, with metallic shavings, oil stains, broken glass, grease and gravel.

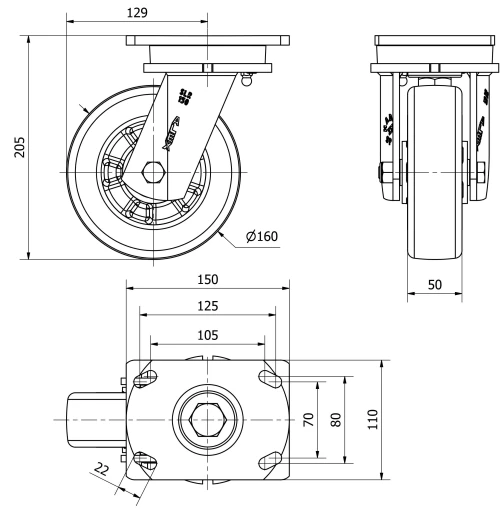

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Polyurethane |
Bearing | Ball |
Diameter (mm) | 160 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 150x110 |
Distance between holes (mm) | 125x70/105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 129 |
Overall height (mm) | 205 |
Load | 600 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Fabricada con chapa de acero hasta 8m/m de espesor. Doble cabezal giratorio, el superior de bolas grandes de acero y el inferior de precisión que facilita los esfuerzos de giro, radiales y axiales. Modelo construido especialemente para: carretillas grandes con empuje mecánico, manutención de factorías, industrias metalúrgicas. Acabado cincado blanco. Fabricadas según normas europeas EN 12532.
-
Rolling Resistence Good
-
Noise during the march Very Good
-
Floor Protection Very Good
