SL SERIES-FT 4-1203
EAN 8422202412030
Reinforced nylon castors, especially indicated to support high-loads up to 600 Kg.
It is used in logistics transport tools, outdoor areas, clean rooms, internal logistics, mobile platforms, elevating platforms, transport carts, logistics for military missions material, heavy machinery for the construction sector, mobile cranes, sport centres, carbody factories and petrochemical industry.
Mainly used in the aeronautic sector, railway and automobile factories.
FT: especially indicated for food and industrial applications. Does not leave marks on floor. Reinforced. Canning factories.

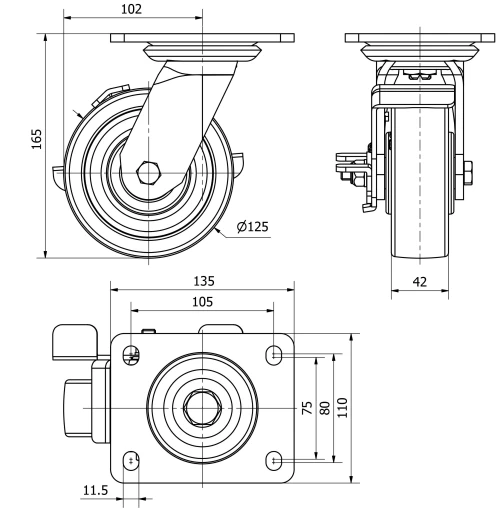

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake |
Material | Nylon(Polyamide 6) |
Bearing | Ball |
Diameter (mm) | 125 |
Width of tyre (mm) | 42 |
Plate dimensions (mm) | 135x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 102 |
Overall height (mm) | 165 |
Load | 500 |
Unit Weight of the wheel (kg) | 2.443 |
Volume (cm3) | 3076 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of welded steel up to 6 mm.Finish: Passivated zinc.Swivel head with a hardened double ball raceways to ensure durability and longevity of the castor.Manufactured to European standard EN 12532.
-
Rolling Resistence Excelent
-
Noise during the march Reasonable
-
Floor Protection Reasonable
