SL SERIES-FT 4-1621

Code: 4-1621

Reinforced nylon castors, especially indicated to support high-loads up to 600 Kg.

It is used in logistics transport tools, outdoor areas, clean rooms, internal logistics, mobile platforms, elevating platforms, transport carts, logistics for military missions material, heavy machinery for the construction sector, mobile cranes, sport centres, carbody factories and petrochemical industry.

Mainly used in the aeronautic sector, railway and automobile factories.

FT: especially indicated for food and industrial applications. Does not leave marks on floor. Reinforced. Canning factories.

Components

Brackets

Made of welded steel up to 6 mm.Finish: Passivated zinc.Swivel head with a hardened double ball raceways to ensure durability and longevity of the castor.Manufactured to European standard EN 12532.

Wheel

Reinforced nylon (Polyamid 6) wheel, white colour

Temperature range: -30º ÷ +80º

Rolling Resistence Excelent

Noise during the march Reasonable

Floor Protection Reasonable

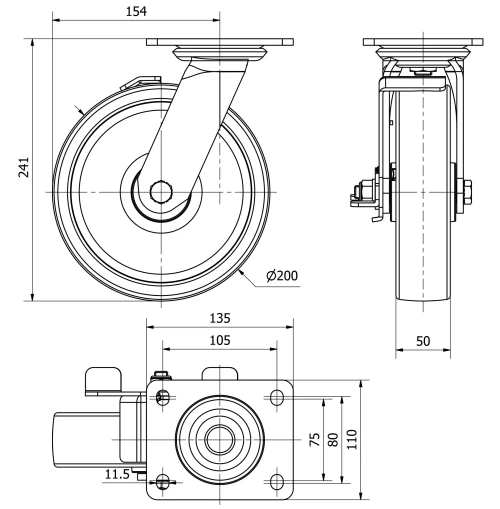

Technical Data 4-1621

EAN:

8422202416212

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake

Material:

Nylon(Polyamide 6)

Bearing:

Plain

Diameter (mm):

200

Width of tyre (mm):

Plate dimensions (mm):

135x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

154

Overall height (mm):

241

Load:

600

Unit Weight of the wheel (kg):

3,094

Volume (cm³):

5872
