SL SERIES-PO 4-0959
EAN 8422202409597
Castors with white nylon centre and red polyurethane rubber tyre with a hardness of 90-95º Shore A. Especially indicated to support high-loads up to 600 Kg.
It is used in: logistics transport tools, outdoor areas, internal logistics, carbody factories, mobile platforms, elevating platforms, logistics for military missions material, heavy machinery, mobile cranes, elevating tables and boilers.
Mainly used in the aeronautic sector, railway and automobile factories.
Suitable for mechanical engineering projects by draftsmen and project executors.
PO: elastic functioning. Noiseless. High floor protection. Long useful life. Resistant to oils, grease and shavings.

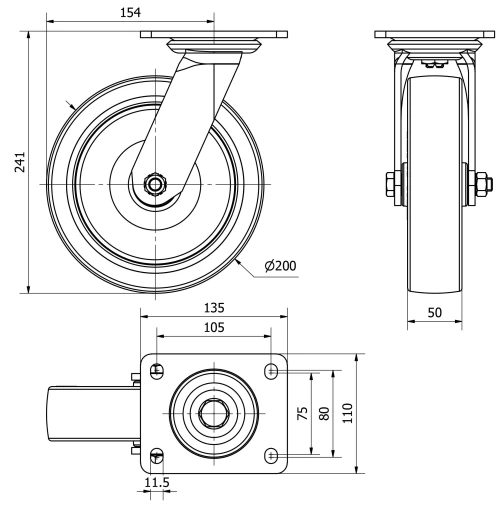

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Polyurethane |
Hardness of tread | 90-95º SHORE A |
Bearing | Plain |
Diameter (mm) | 200 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 135x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 154 |
Overall height (mm) | 241 |
Load | 600 |
Unit Weight of the wheel (kg) | 2.96 |
Volume (cm3) | 5872 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of welded steel up to 6 mm. Finish: Passivated zinc. Swivel head with a hardened double ball raceways to ensure durability and longevity of the castor. Manufactured to European standard EN 12532.
-
Rolling Resistence Very Good
-
Noise during the march Very Good
-
Floor Protection Very Good
