SL SERIES-PO 4-1211

Code: 4-1211

Castors with white nylon centre and red polyurethane rubber tyre with a hardness of 90-95º Shore A. Especially indicated to support high-loads up to 600 Kg.

It is used in: logistics transport tools, outdoor areas, internal logistics, carbody factories, mobile platforms, elevating platforms, logistics for military missions material, heavy machinery, mobile cranes, elevating tables and boilers.

Mainly used in the aeronautic sector, railway and automobile factories.

Suitable for mechanical engineering projects by draftsmen and project executors.

PO: elastic functioning. Noiseless. High floor protection. Long useful life. Resistant to oils, grease and shavings.

Components

Brackets

Made of welded steel up to 6 mm. Finish: Passivated zinc. Swivel head with a hardened double ball raceways to ensure durability and longevity of the castor. Manufactured to European standard EN 12532.

Wheel

Red polyurethane tyre on white polyamide centre.95º shore A

Temperature range: -25º ÷ +80º

Rolling Resistence Very Good

Noise during the march Very Good

Floor Protection Very Good

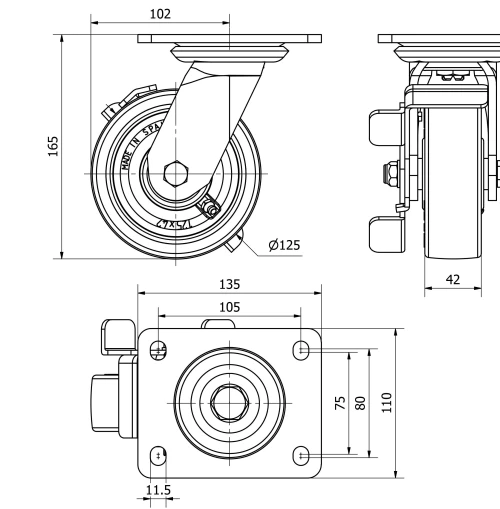

Technical Data 4-1211

EAN:

8422202412115

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake

Material:

Polyurethane

Hardness of tread:

90-95º SHORE A

Bearing:

Ball

Diameter (mm):

125

Width of tyre (mm):

Plate dimensions (mm):

135x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

102

Overall height (mm):

165

Load:

300

Unit Weight of the wheel (kg):

2,443

Volume (cm³):

3076
