Which castors do you need?

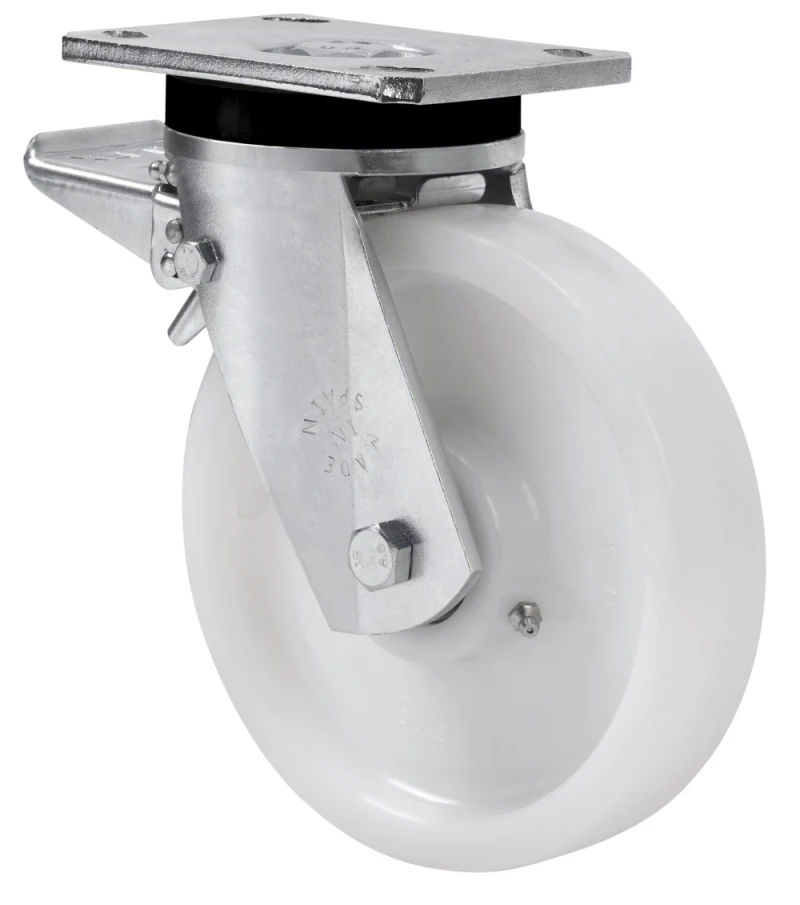

SLR SERIES-FT 2-3679
EAN 8422202236797
Reinforced nylon castors, especially indicated to support high-loads up to 1.000 Kg.
It is used in: logistics transport tools, outdoor areas, clean rooms, internal logistics, mobile platforms, elevating platforms, transport carts, logistics for military missions material, heavy machinery for the construction sector, mobile cranes, sport centres, carbody factories and petrochemical industry.
Mainly used in the aeronautic sector, railway and automobile factories.
FT: especially indicated for food and chemical industry applications. Does not leave marks on floor. Reinforced. Canning factories.

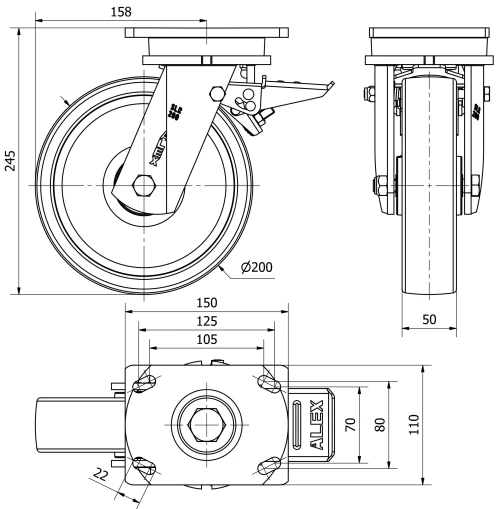

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake And Fork |
Material | Nylon(Polyamide 6) |
Bearing | Plain |
Diameter (mm) | 200 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 150x110 |
Distance between holes (mm) | 125x70/105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 158 |
Overall height (mm) | 245 |
Load | 1000 |
Unit Weight of the wheel (kg) | 4.36 |
Volume (cm3) | 7169 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of forged steel up to 8 mm. Double swivel head. The upper one with large ball bearings and the lower one with precision bearings to facilitate rotation, radial and axial efforts. Model especially manufactured for use in large carts with mechanical drive, factory maintenance, metallurgical industries. White zinc finish Manufactured to European Standards EN 12532
-
Rolling Resistence Excelent
-
Noise during the march Reasonable
-
Floor Protection Reasonable
