SLR SERIES-PO 2-3657

Code: 2-3657

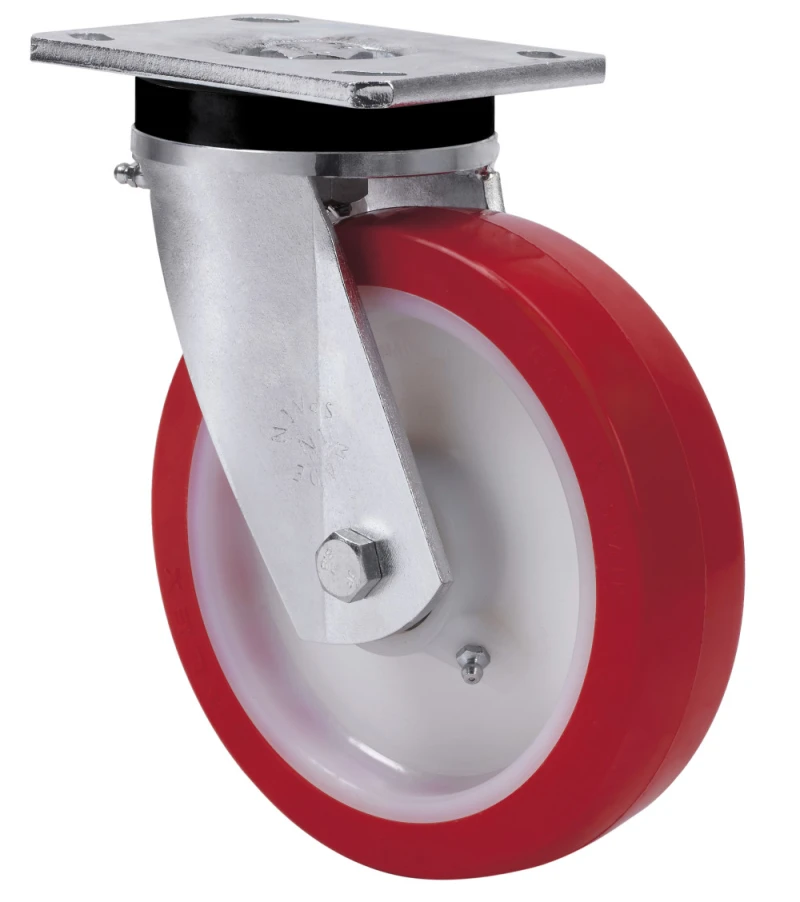

Castors with white nylon centre and red polyurethane tyre with a hardness of 90º-95º Shore A. Especially indicated to support high-loads up to 600 Kg.

It is used in: logistics transport tools, outdoor areas, internal logistics, carbody factories, mobile platforms, elevating platforms, logistics for military missions material, heavy machinery, mobile cranes, elevating tables and boilers.

Mainly used in the aeronautic sector, railway and automobile factories and food industry.

Suitable for mechanical engineering projects by draftsmen and project executors.

PO: noiseless. Floor protection. Long useful life. Resistant to oils, grease and shavings.

Components

Brackets

Made of forged steel up to 8 mm. Double swivel head. The upper one with large ball bearings and the lower one with precision bearings to facilitate rotation, radial and axial efforts. Model especially manufactured for use in large carts with mechanical drive, factory maintenance, metallurgical industries. White zinc finish Manufactured to European Standards EN 12532

Wheel

Red polyurethane tyre on white polyamide centre.95º shore A

Temperature range: -25º ÷ +80º

Rolling Resistence Very Good

Noise during the march Very Good

Floor Protection Very Good

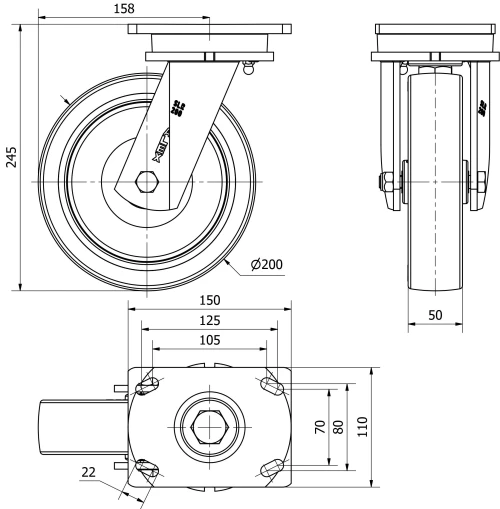

Technical Data 2-3657

EAN:

8422202236575

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polyurethane

Hardness of tread:

90-95º SHORE A

Bearing:

Plain

Diameter (mm):

200

Width of tyre (mm):

Plate dimensions (mm):

150x110

Distance between holes (mm):

125x70/105x80

Plate hole diameter (mm):

Offset (mm):

158

Overall height (mm):

245

Load:

600

Unit Weight of the wheel (kg):

4,36

Volume (cm³):

6279
