Which castors do you need?
SLR SERIES-PO 2-3659
EAN 8422202236599

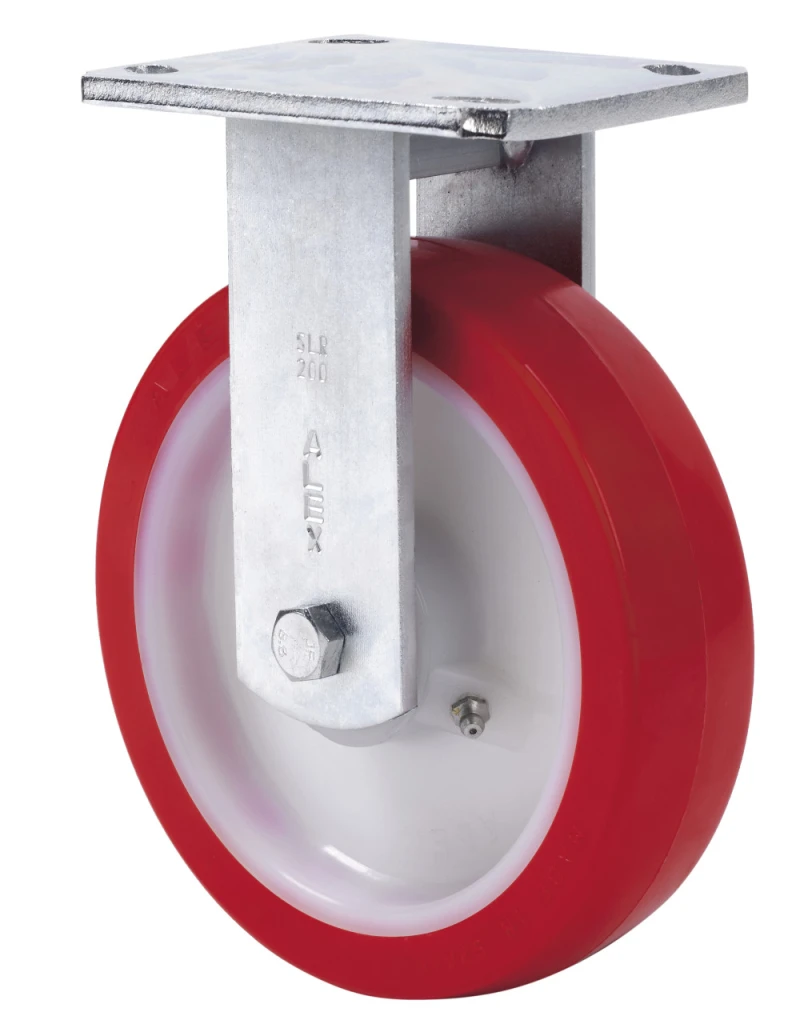

Castors with white nylon centre and red polyurethane tyre with a hardness of 90º-95º Shore A. Especially indicated to support high-loads up to 600 Kg.
It is used in: logistics transport tools, outdoor areas, internal logistics, carbody factories, mobile platforms, elevating platforms, logistics for military missions material, heavy machinery, mobile cranes, elevating tables and boilers.
Mainly used in the aeronautic sector, railway and automobile factories and food industry.
Suitable for mechanical engineering projects by draftsmen and project executors.
PO: noiseless. Floor protection. Long useful life. Resistant to oils, grease and shavings.

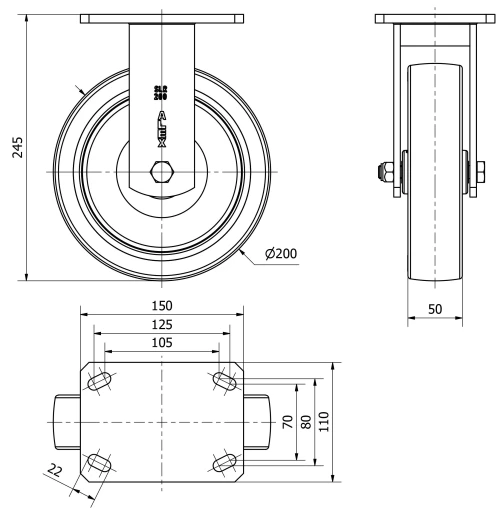

Technical Data
Housing Type | Fixed |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Polyurethane |
Hardness of tread | 90-95º SHORE A |
Bearing | Plain |
Diameter (mm) | 200 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 150x110 |
Distance between holes (mm) | 125x70/105x80 |
Plate hole diameter (mm) | 10 |
Overall height (mm) | 245 |
Load | 600 |
Unit Weight of the wheel (kg) | 3.184 |
Volume (cm3) | 5390 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of forged steel up to 8 mm. Double swivel head. The upper one with large ball bearings and the lower one with precision bearings to facilitate rotation, radial and axial efforts. Model especially manufactured for use in large carts with mechanical drive, factory maintenance, metallurgical industries. White zinc finish Manufactured to European Standards EN 12532
-
Rolling Resistence Very Good
-
Noise during the march Very Good
-
Floor Protection Very Good
