TV SERIES-DE 2-1999

Code: 2-1999

Castors with aluminium centre and elastic black rubber tyre with a hardness of 70º Shore A. Especially indicated to support high-loads up to 450 Kg.

It is used in: logistics transport tools, repair shops, tool trolleys, internal logistics, tubular carts, mobile platforms, transport tools, elevating platforms, food industry, logistics for military missions material, heavy machinery for the construction sector, elevating driven carts, poultry farms, containers, roll containers and transport cages.

Suitable for mechanical engineering projects by draftsmen and project executors.

DE: ideal in the manual and noiseless displacement of medium-loads. Absorption to impacts and vibrations. High protection of floors and equipment. Ideal in uneven surfaces.

Components

Brackets

Manufactured with pressed steel up to 5 mm. Highly rust-resistant double-chrome coating. Double ball bearing reinforced with hardened ball races. Dust-proof in the sealing swivel head. Manufactured to European standard EN 12532.

Wheel

Elastic rubber tyre on Aluminium centre. 70º Shore A

Temperature range: -20º ÷ +70º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

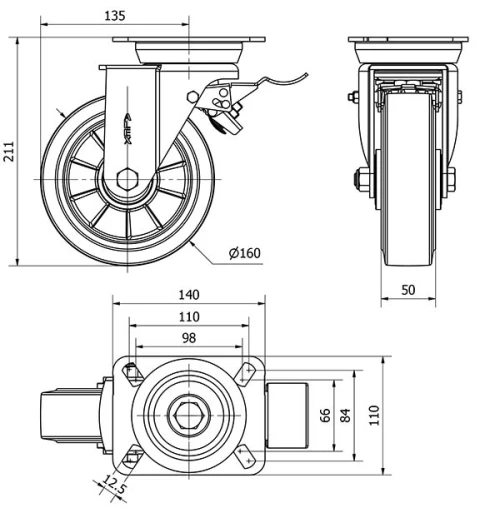

Technical Data 2-1999

EAN:

8422202219998

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Rubber

Hardness of tread:

70º SHORE A

Bearing:

Ball

Diameter (mm):

160

Width of tyre (mm):

Plate dimensions (mm):

139x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

135

Overall height (mm):

211

Load:

350

Unit Weight of the wheel (kg):

3,46

Volume (cm³):

5733

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF
