TV SERIES-TD 2-4005
EAN 8422202240053

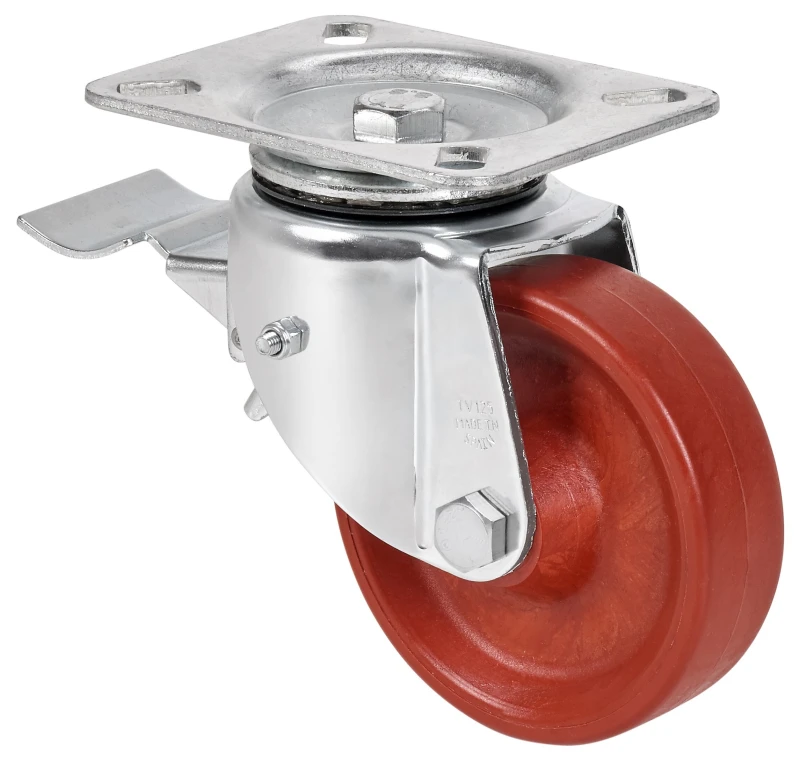

Reinforced resine castors, especially indicated to stand high temperatures up to 200º and high-loads up to 700 Kg.
It is used in: furnaces and light machinery.
Mainly used in the industrial sector, aeronautic sector, automobile factories and food industry.
Suitable for mechanical engineering projects by draftsmen and project executors.
TD: reinforced resine castor. Indicated for industrial industry.

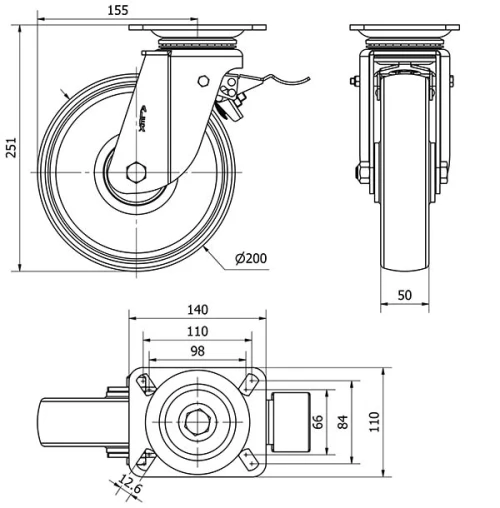

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake And Fork |
Material | Phenolic Resin Wheel |
Bearing | Plain |
Diameter (mm) | 200 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 139x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 155 |
Overall height (mm) | 251 |
Load | 800 |
Volume (cm3) | 7372 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Manufactured with pressed steel up to 5 mm. Highly rust-resistant double-chrome coating. Double ball bearing reinforced with hardened ball races. Dust-proof in the sealing swivel head. Manufactured to European standard EN 12532.
-
Rolling Resistence Very Good
-
Noise during the march Reasonable
-
Floor Protection Reasonable
