ZV SERIES-AUB 2-2526

Code: 2-2526

Castors wiht aluminium centre and cast polyurethane tyre with a hardness of 95º Shore A. Especially indicated to support high-loads up to 400 Kg.

It is used in: logistics transport tools, repair shops, tool trolleys, tubular carts, pneumatic factories, internal logistics, tool trolleys, transport tools, elevating platforms, transport carts, ladders, sweeping machines, polishing machines, packaging machines, conveyor belts, mobile cranes, elevating driven carts, boilers, cabinetmaker's, metalworks, agricultural farms, elevating tables, meat industry, containers and sport centres.

Mainly used in the aeronautic sector, railway, automobile factories, food industry, reapair shops and industrial activities.

Suitable for mechanical engineering projects by draftsmen and project executors.

AUB: polyurethane for heavy duty works. Absorption to impacts.

Components

Brackets

Made of pressed steel up to 4 mm. Finish: zinc plated finish. Double ball bearing in the swivel head. Universal model for medium-duty loads. Manufactured to European standards EN 12530/12532.

Wheel

Polyurethane tyre on aluminium die-cast centre. 95º shore A

Temperature range: -20º ÷ +60º

Rolling Resistence Very Good

Noise during the march Good

Floor Protection Very Good

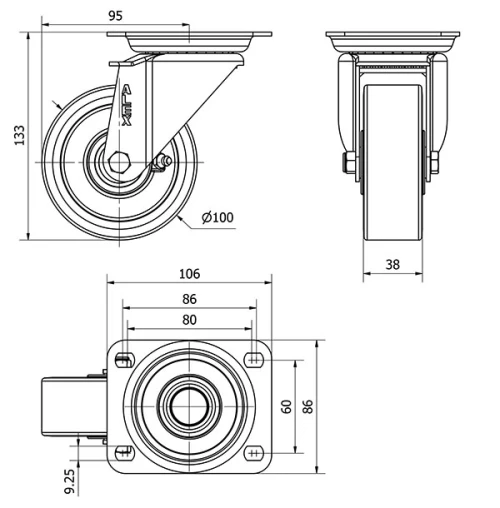

Technical Data 2-2526

EAN:

8422202225265

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polyurethane

Hardness of tread:

95º SHORE A

Bearing:

Ball

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

106x86

Distance between holes (mm):

86/80x60

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

133

Load:

250

Unit Weight of the wheel (kg):

1,002

Volume (cm³):

1706
