Which castors do you need?
ZV SERIES-BS 2-4086
EAN 8422202240862
Castors with metal centre and black rubber tyre. Especially indicated to support high-loads up to 250 Kg.
It is used in tool trolleys, tubular carts, internal logistics, mobile platforms, transport tools, elevating platforms, repair shops, logistics for military missions material, restaurants, sweeping machines, polishing machines, welding, cement mixers, mobile cranes, trailers, agricultural farms, elevating tables, roll containers and containers.
BS: smooth and noiseless castors. High floor protection. Absorption to impacts and vibrations.

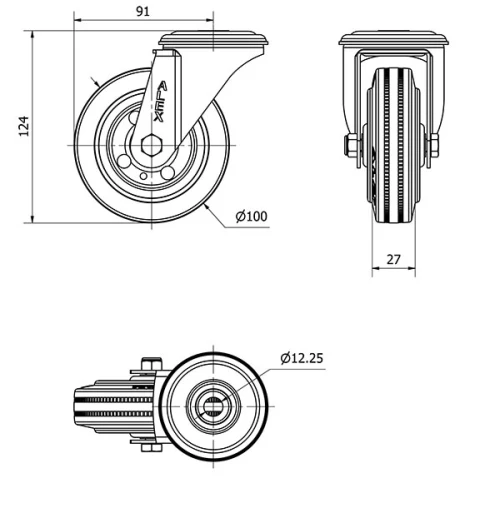

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Without Brake |
Material | Rubber |
Bearing | Roller |
Diameter (mm) | 100 |
Width of tyre (mm) | 27 |
Plate hole diameter (mm) | 12 |
Offset (mm) | 91 |
Overall height (mm) | 124 |
Load | 110 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 4 mm.Finish: zinc plated finish.Double ball bearing in the swivel head.Universal model for medium-duty loads.Manufactured to European standards EN 12530/12532.
-
Rolling Resistence Reasonable
-
Noise during the march Excelent
-
Floor Protection Excelent
