ZV SERIES-BS 2-1003

See comparative

Code: 2-1003

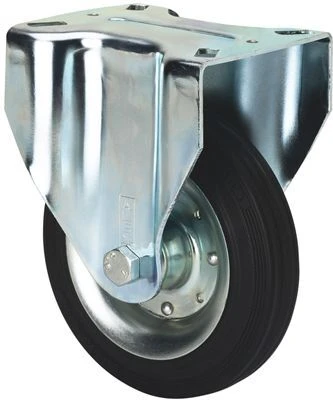

Castors with metal centre and black rubber tyre. Especially indicated to support high-loads up to 250 Kg.

It is used in tool trolleys, tubular carts, internal logistics, mobile platforms, transport tools, elevating platforms, repair shops, logistics for military missions material, restaurants, sweeping machines, polishing machines, welding, cement mixers, mobile cranes, trailers, agricultural farms, elevating tables, roll containers and containers.

BS: smooth and noiseless castors. High floor protection. Absorption to impacts and vibrations.

Components

Brackets

Made of pressed steel up to 4 mm.Finish: zinc plated finish.Double ball bearing in the swivel head.Universal model for medium-duty loads.Manufactured to European standards EN 12530/12532.

Wheel

Rubber tyre on pressed steel centre

Temperature range: -20º ÷ +60º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

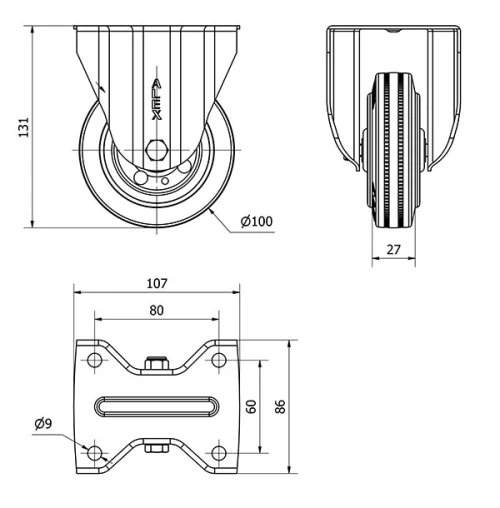

Technical Data 2-1003

EAN:

8422202210032

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

80-85º SHORE A

Bearing:

Roller

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

107x86

Distance between holes (mm):

80x60

Plate hole diameter (mm):

Overall height (mm):

131

Load:

110

Unit Weight of the wheel (kg):

0,72

Volume (cm³):

1205

Diameter Attribute:
